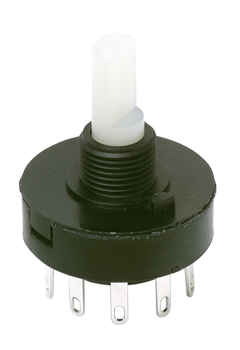

C&K COMPONENTS R10305RN02B Rotary Switch
The C&K Components R10305RN02B is a robust rotary switch designed for versatile applications. It offers multi-pole and multi-position capabilities, ensuring reliable switching performance. The switch features a positive detent for precise positioning and is suitable for both panel and PCB mounting, providing flexibility in design. Constructed with durable materials like 6/6 nylon and copper with silver plating, the R10305RN02B is built to withstand demanding environments. Its RoHS compliance further enhances its appeal for environmentally conscious designs. Typical applications include ceiling fans, industrial equipment, and portable tools.
C&K COMPONENTS R10305RN02B Rotary Switch Specifications:
- Contact Rating: 5 AMPS @ 125 V AC; 2.5 AMPS @ 250 V AC; 0.5 AMP @ 125 V DC; 1/8 HP @ 125 and 250 VAC (UL/CSA)
- Electrical Life: 10,000 make-and-break cycles at full load
- Contact Resistance: Below 10 m Ω typ. initial @ 2-4 V DC, 100 mA
- Insulation Resistance: 10[9] Ω min.
- Dielectric Strength: 1,000 Vrms min. @ sea level
- Indexing: 36º-one contact models, 10 position max.; two contact models, 5 position max.
- Housing & Bushing: 6/6 nylon (UL 94V-2)
- Actuator: 6/6 nylon (UL 94V-2)
- Contacts & Terminals: Copper, silver plated
- Contact Spring: Music wire or stainless steel
- Mounting Nut: Steel, zinc plated
- Terminal Seal: Epoxy
- Operating & Storage Temperature: -30ºC to 95ºC
