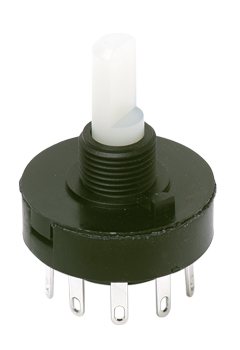

C&K COMPONENTS R20307RR01Q Rotary Switch
The C&K Components R20307RR01Q is a robust rotary switch designed for a wide range of applications, including ceiling fans, industrial equipment, and portable tools. It offers multi-pole and multi-position functionality with a positive detent for reliable operation. The switch is suitable for both panel and PCB mounting and is enclosed for added protection. Constructed with 6/6 nylon housing and silver-plated copper contacts, it ensures reliable performance and is RoHS compliant. It is available with various mounting styles and termination options to suit specific application requirements.
C&K COMPONENTS R20307RR01Q Rotary Switch Specifications:
- Contact Rating: 5 AMPS @ 125 V AC; 2.5 AMPS @ 250 V AC; 0.5 AMP @ 125 V DC; 1/8 HP @ 125 and 250 VAC (UL/CSA)
- Electrical Life: 10,000 make-and-break cycles at full load
- Contact Resistance: Below 10 m Ω typ. initial @ 2-4 V DC, 100 mA
- Insulation Resistance: 10[9] Ω min.
- Dielectric Strength: 1,000 Vrms min. @ sea level
- Indexing: 36º-one contact models, 10 position max.; two contact models, 5 position max.
- Housing & Bushing: 6/6 nylon (UL 94V-2)
- Actuator: 6/6 nylon (UL 94V-2)
- Contacts & Terminals: Copper, silver plated
- Contact Spring: Music wire or stainless steel
- Mounting Nut: Steel, zinc plated
- Terminal Seal: Epoxy
- Operating & Storage Temperature: -30ºC to 95ºC
