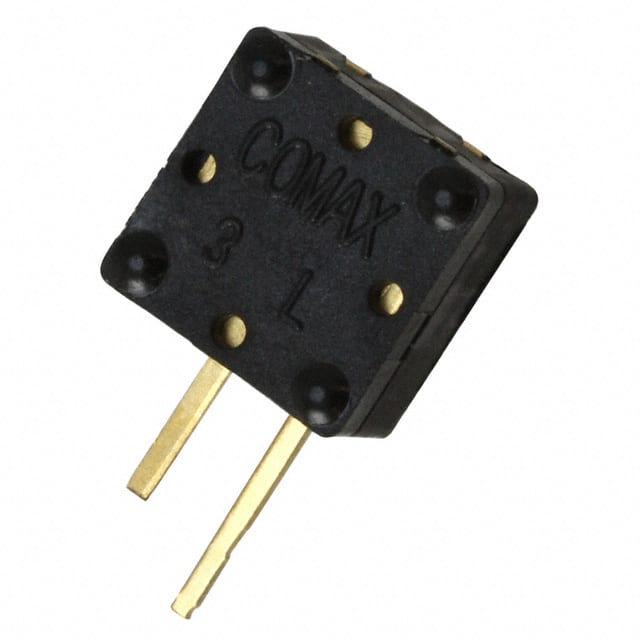

C&K COMPONENTS RB22007AR Rolling Ball Sensor Switch
The RB22007AR is a reliable rolling ball sensor switch designed for various electronic applications. It features a copper alloy nickel-plated frame, gold-plated movable contacts, and a brass ball, ensuring durability and high performance. Suitable for household goods, safety, and security controls, this sensor operates within a temperature range of -20°C to +70°C. It provides stable switching at 0° to -10° sensor angles with a long cycle life of 100,000 cycles, making it ideal for electronic toys, consumer electronics, and industrial automation.
C&K COMPONENTS RB22007AR Rolling Ball Sensor Switch Specifications:
- Contact Arrangement: SPST
- Sensor Angle: 0° to -10°
- Minimum Voltage: 1 VDC 10mA
- Maximum Voltage: 5 VDC 1mA
- Operating Life: 100,000 cycles
- Insulation Resistance: 1000 MΩ @ 100 VDC
- Dielectric Strength: 500 V AC (50-60 Hz)
- Operating Temperature: -20°C to +70°C
- Frame Material: Copper alloy, nickel plated
- Cover Material: PA 46 (UL94V-0)
- Movable Contact: Copper alloy, nickel plated
- Terminals: Copper alloy, gold plated
- Brass Ball: Brass, gold plated
Buy the Innovative RB22007AR – Reliable Rolling Ball Sensor Switch for Industrial Applications
Secure your electronic projects with the durable and high-performance rolling ball sensor switch. Perfect for household goods, electronics, and security controls, it offers long cycle life and stable operation from -20°C to +70°C. Easy to integrate into automation and safety systems, the RB22007AR ensures reliable switching with a contact resistance below 5 ohms and high insulation resistance. Order online today to enhance your devices' reliability with this precision, miniature sensor switch designed for demanding industrial and consumer electronics applications.
Buy RB22007AR now and experience unmatched reliability and performance in your electronic or safety systems.
Frequently Asked Questions
Where can I buy C&K COMPONENTS RB22007AR?
You can click on the BUY or RFQ button to purchase RB22007AR from an authorized C&K COMPONENTS distributor.
How do I troubleshoot issues or seek technical support for part RB22007AR?
You can download the RB22007AR datasheet or visit the C&K COMPONENTS website for support.
Who is the manufacturer of RB22007AR?
C&K COMPONENTS
