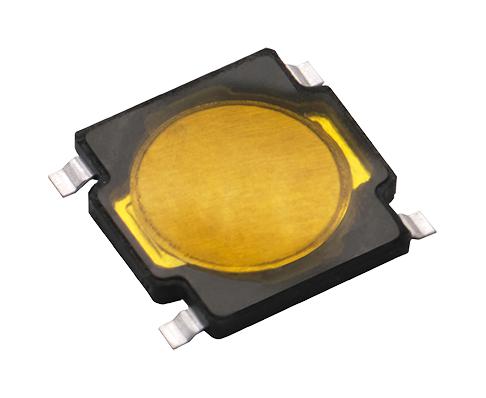

C&K COMPONENTS RKA2SGG055SMTRLFS Microminiature SMT Tactile Switch
The RKA2SGG055SMTRLFS is a microminiature SMT top actuated tactile switch designed for compact electronic applications. It features a low profile height of 0.55 mm, with an actuation force of 180 gf and a life cycle of 100,000 operations. Suitable for space-constrained devices like keyfobs, health & medical equipment, and navigation tools, it offers reliable momentary contact with a maximum voltage of DC 15V and a maximum current of 20mA. The switch supports lead-free reflow soldering, ensuring robust assembly and durability in various operational environments from -40°C to 85°C.
C&K COMPONENTS RKA2SGG055SMTRLFS Microminiature SMT Tactile Switch Specifications:
- Height: 0.55 mm
- Actuation Force: 180 gf
- Life Cycles: 100,000
- Maximum Voltage: DC 15V
- Maximum Current: 20 mA
- Contact Resistance: 50 MΩ min.
- Insulation Resistance: 500 MΩ max.
- Dielectric Strength: 250 VAC (1 min)
- Bounce Time: < 10 ms
- Material: Sealed contact structure
- Terminals: SMT gull-wing or bent type
- Operating Temperature: -40°C to 85°C
- Soldering Method: Infrared reflow compatible
- Packaging: 3,000 pieces per reel
- Dimensions: 0.55 mm height, 2.5 mm x 4.5 mm footprint
Buy the Buy CK Switches RKA2SGG055SMTRLFS Part Number RKA2SGG055SMTRLFS Online
Purchase the CK Switches RKA2SGG055SMTRLFS today online to benefit from high-quality, space-saving tactile switches designed for reliable, momentary contact in small, modern electronic devices. Perfect for keyfobs, medical gadgets, and navigational equipment, this switch boasts a 0.55 mm low profile, 180 gf actuation force, and a lifespan of 100,000 cycles, ensuring durability and consistent performance. Easy to solder via infrared reflow and available in a reel of 3,000 pieces, it is ideal for manufacturing efficiency and long-term reliability.
Order your CK Switches RKA2SGG055SMTRLFS tactile switch today and enhance your compact electronic devices with reliable momentary contact performance.
Frequently Asked Questions
Where can I buy C&K COMPONENTS RKA2SGG055SMTRLFS?
You can click on the BUY or RFQ button to purchase RKA2SGG055SMTRLFS from an authorized C&K COMPONENTS distributor.
How do I troubleshoot issues or seek technical support for part RKA2SGG055SMTRLFS?
You can download the RKA2SGG055SMTRLFS datasheet or visit the C&K COMPONENTS website for support.
Who is the manufacturer of RKA2SGG055SMTRLFS?
C&K COMPONENTS
