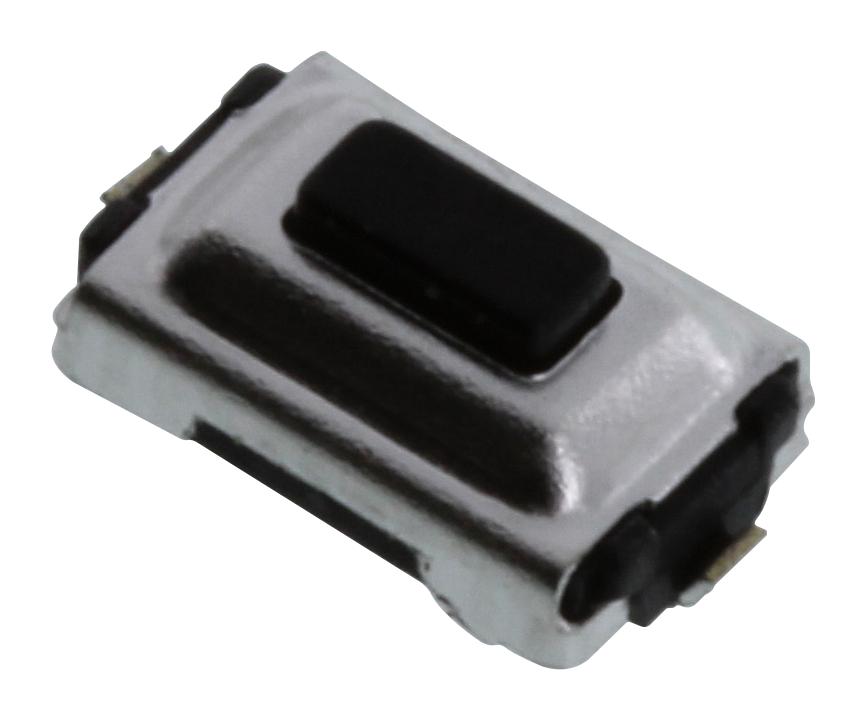

C&K COMPONENTS RS285G05A2URT Tactile Switch
These tactile switches are compact, durable, and reliable components suitable for consumer electronics, automotive, and household appliances. They feature a long operating life, with various actuator options including cylinder, square, and flat shapes, and are available in through-hole and SMT configurations. They operate at 50mA @ 12 VDC with a contact resistance of 100 m ohms max. Designed with silver-plated terminals and silver-clad spring plates, they withstand temperatures from -20°C to 70°C, ensuring consistent performance across diverse applications.
C&K COMPONENTS RS285G05A2URT Tactile Switch Specifications:
- Contact Rating: 50mA @ 12 VDC
- Initial Contact Resistance: 100 m ohms max
- Insulation Resistance: 100 M ohms min
- Dielectric Strength: 250 V AC (50-60 Hz)
- Releasing Force: 20 gf min (0.2 N min.)
- Travel: 0.25 + 0.10 mm
- Operating Temperature: -20°C to 70°C
- Materials: Knob: PA; Cover: SUS; Housing: PA; Spring Plate: Silver clad; Terminal: Silver plated
- Life Cycle: 30,000 to 100,000 cycles depending on model
- Dimensions vary with actuator shape and length
- Suitable for SMT and through-hole mounting
Buy the Reliable Switches 285 RS285G05A2URT – Reliable Tactile Switches for Industrial Applications
Get your RS Series tactile switches online now! Designed for reliability in consumer electronics, automotive, and household appliances, these switches feature long operational life, versatile actuator options, and high-quality materials. Easy to mount via SMT or through-hole, they deliver consistent contact resistance and withstand temperatures from -20°C to 70°C. Perfect for industrial projects requiring durable, reliable switches with minimal maintenance. Purchase today and ensure your device's smooth, dependable operation with components trusted across industries.
Order your RS Series 285 RS285G05A2URT tactile switch today and enhance your electronic projects with dependable performance and durable design.
Frequently Asked Questions
Where can I buy C&K COMPONENTS RS285G05A2URT?
You can click on the BUY or RFQ button to purchase RS285G05A2URT from an authorized C&K COMPONENTS distributor.
How do I troubleshoot issues or seek technical support for part RS285G05A2URT?
You can download the RS285G05A2URT datasheet or visit the C&K COMPONENTS website for support.
Who is the manufacturer of RS285G05A2URT?
C&K COMPONENTS
