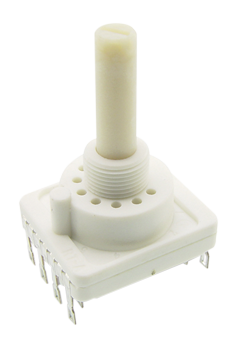

C&K COMPONENTS RTAC30206B06AD25S Rotary Switch Coded
The C&K RTAC30206B06AD25S is a versatile coded rotary switch suitable for a wide range of industrial and commercial applications. This switch offers multiple poles and supports both decimal and hexadecimal coding, providing flexibility in system design. It is designed for PCB or hand soldering and features a bushing mounting option. The switch is RoHS compliant, ensuring environmental responsibility. Typical applications include appliances, electronic alarm systems, medical devices, building automation, and HVAC systems. Its robust construction and reliable performance make it a suitable choice for demanding environments.
C&K COMPONENTS RTAC30206B06AD25S Rotary Switch Coded Specifications:
- Switching Mode: BBM
- Max Switching Power: 5 VA
- Max Switching Current: 150 mA
- Max Carrying Current: 5 A
- Nominal Voltage at 50 Hz: 60 V
- Contact Resistance: < 150 mΩ
- Dielectric Strength Between Contacts and Ground Terminals: 500 V
- Insulation Resistance Between Contacts or Contacts and Frame: 10[9] Ω
- No. of Operations: 10,000
- Bounce: < 5 ms
- Operating Torque: 5 Ncm±20%
- End Stop Torque: 50 Ncm
- Operating Temperature: –20ºC to + 70ºC
- Storage Temperature: –40ºC to + 85ºC
- Bushing/Housing Material: PETP Thermoplastic
- Stationary Contacts & Terminals Material: Nickel Plated Brass
- Rotor Material: Gold or Silver plated Brass or PCB
- Coding Plate Material: PA thermoplastic
- Actuator Material: Polysulfon thermoplastic
- Stop Pin Material: Aluminum
- Ball & Spring Material: Stainless steel
- Washer Material: PA
- Nut Material: Brass
