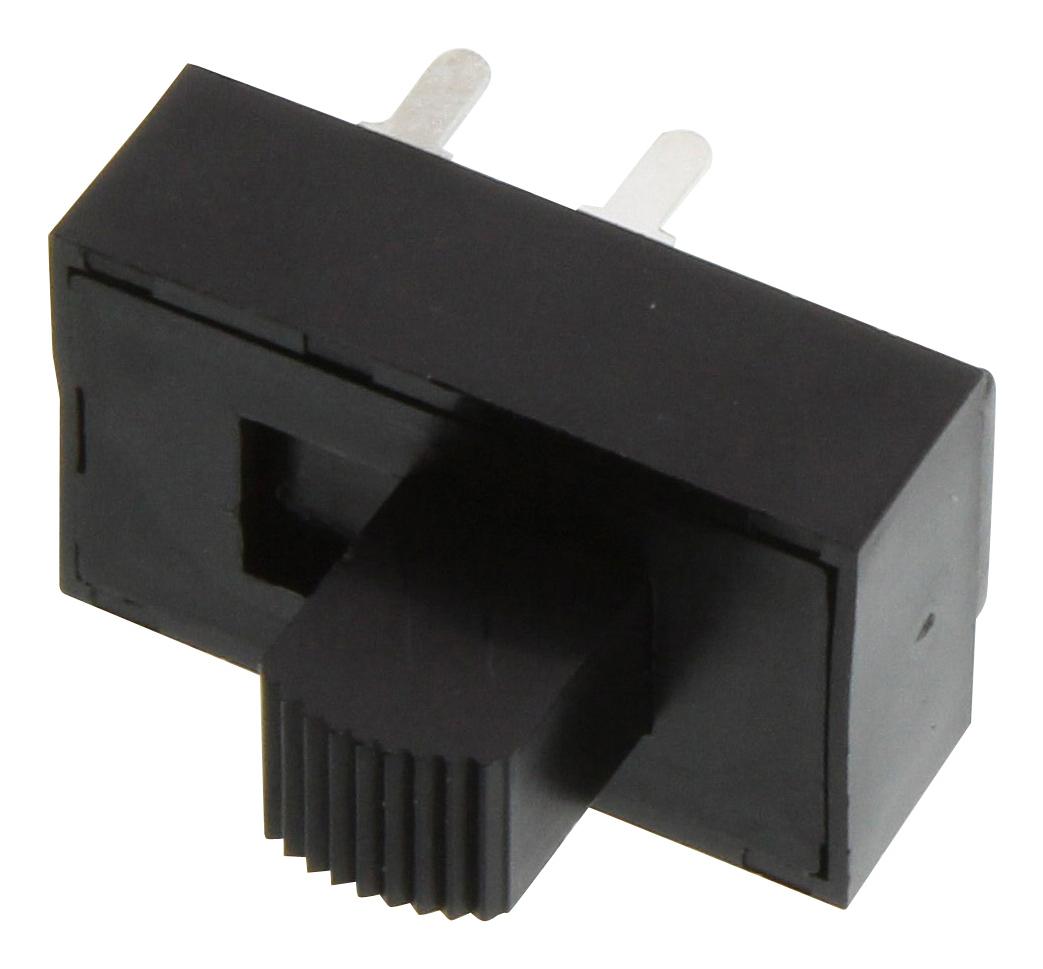

C&K COMPONENTS S201031MS02Q Slide Switch
The C&K COMPONENTS S201031MS02Q slide switch is a versatile component suitable for a range of applications, including portable tools, small appliances, and floor care products. It boasts an enclosed housing for added protection and offers flexible mounting options, including PC and snap-in panel mounting. The switch is designed for reversing applications and is RoHS compliant, ensuring environmental responsibility. With a robust construction and reliable performance, the S201031MS02Q is a dependable choice for various industrial and consumer applications.
C&K COMPONENTS S201031MS02Q Slide Switch Specifications:
- CONTACT RATING: 6 AMPS @ 125 V AC; 6 AMPS @ 250 V AC; 1 AMP @ 125 V DC (S1XX, S2XX Models); 12 AMPS @ 125 V AC; 6 AMPS @ 250 V AC; 1 AMP @ 125 V DC (S5XX, S6XX Models); 15 AMPS @ 125 V AC; 6AMPS @ 250 V AC (S7XX, S8XX Models)
- HOUSING: 6/6 nylon (UL94V-2), black
- TOP PLATE: 6/6 nylon (UL94V-2), black
- ACTUATOR: 6/6 nylon (UL94V-2), black (standard)
- CONTACTS: Copper, silver plated (Q contact material)
- TERMINALS: Copper, silver plated (Q contact material)
- ELECTRICAL LIFE: 10,000 make-and-break cycles at full load
- CONTACT RESISTANCE: Below 10 m Ω typ. initial
- CONTACT SPRING: Music wire or stainless steel
- INSULATION RESISTANCE: 10[9] Ω min.
- DIELECTRIC STRENGTH: 1,000 Vrms min. @ sea level
- OPERATING TEMPERATURE: -30ºC to +65ºC
- STORAGE TEMPERATURE: -30ºC to +85ºC
- SWITCH FUNCTION: SPST, SPDT, DPDT
- MOUNTING STYLE: PC, Snap-in panel
- TERMINATIONS: Solder lug, PC Thru-hole, Quick connect, Wire lead
Buy the S201031MS02Q C&K COMPONENTS Slide Switch | myMectronic
Purchase the C&K COMPONENTS S201031MS02Q slide switch securely and conveniently online.
Buy Now
Frequently Asked Questions
Where can I buy C&K COMPONENTS S201031MS02Q?
You can click on the BUY or RFQ button to purchase S201031MS02Q from an authorized C&K COMPONENTS distributor.
How do I troubleshoot issues or seek technical support for part S201031MS02Q?
You can download the S201031MS02Q datasheet or visit the C&K COMPONENTS website for support.
Who is the manufacturer of S201031MS02Q?
C&K COMPONENTS
