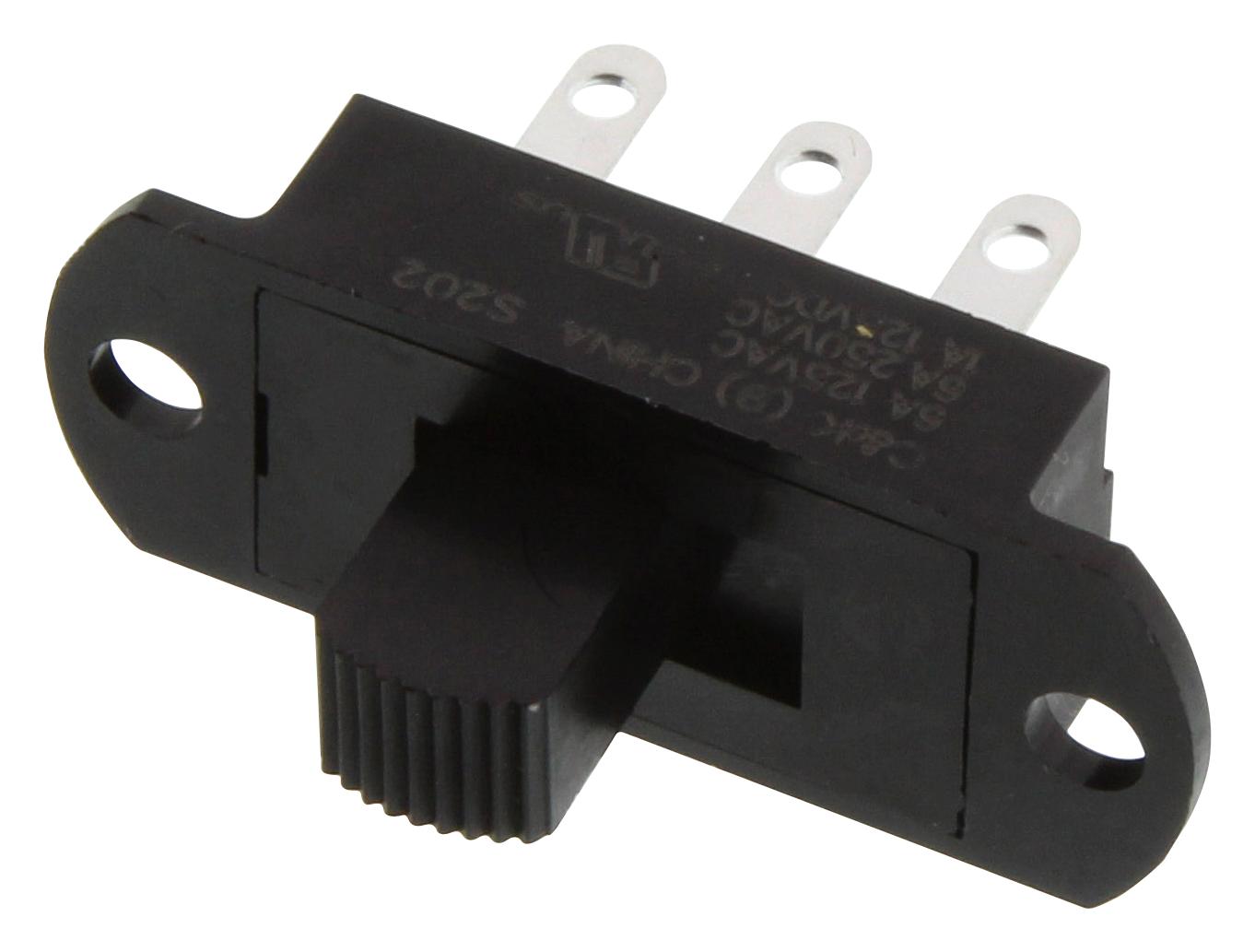

C&K COMPONENTS S202031SS03Q Slide Switch
The C&K COMPONENTS S202031SS03Q slide switch is a versatile component suitable for a wide range of applications, including portable tools, small appliances, and floor care products. It boasts a durable nylon housing and offers both PC and snap-in panel mounting options, providing flexibility in design and integration. With a reversing option and RoHS compliance, this switch delivers reliable performance while meeting environmental standards. Its robust construction and multiple mounting options make it ideal for demanding industrial environments.
C&K COMPONENTS S202031SS03Q Slide Switch Specifications:
- Contact Rating: 6 AMPS @ 125 V AC; 6 AMPS @ 250 V AC; 1 AMP @ 125 V DC (S1XX, S2XX Models); 12 AMPS @ 125 V AC; 6 AMPS @ 250 V AC; 1 AMP @ 125 V DC (S5XX, S6XX Models); 15 AMPS @ 125 V AC; 6AMPS @ 250 V AC (S7XX, S8XX Models)
- Housing: 6/6 nylon (UL94V-2), black
- Top Plate: 6/6 nylon (UL94V-2), black
- Actuator: 6/6 nylon (UL94V-2), black (standard)
- Contacts: Copper, silver plated
- Terminals: Copper, silver plated
- Electrical Life: 10,000 make-and-break cycles at full load
- Contact Resistance: Below 10 m Ω typ. initial
- Contact Spring: Music wire or stainless steel
- Insulation Resistance: 10[9] Ω min.
- Dielectric Strength: 1,000 Vrms min. @ sea level
- Operating Temperature: -30ºC to +65ºC
- Storage Temperature: -30ºC to +85ºC
- Mounting: PC and Snap-in panel mounting
Buy the S202031SS03Q C&K COMPONENTS Slide Switch | myMectronic
Securely purchase the C&K COMPONENTS S202031SS03Q slide switch and ensure reliable performance for your applications.
Buy Now
Frequently Asked Questions
Where can I buy C&K COMPONENTS S202031SS03Q?
You can click on the BUY or RFQ button to purchase S202031SS03Q from an authorized C&K COMPONENTS distributor.
How do I troubleshoot issues or seek technical support for part S202031SS03Q?
You can download the S202031SS03Q datasheet or visit the C&K COMPONENTS website for support.
Who is the manufacturer of S202031SS03Q?
C&K COMPONENTS
