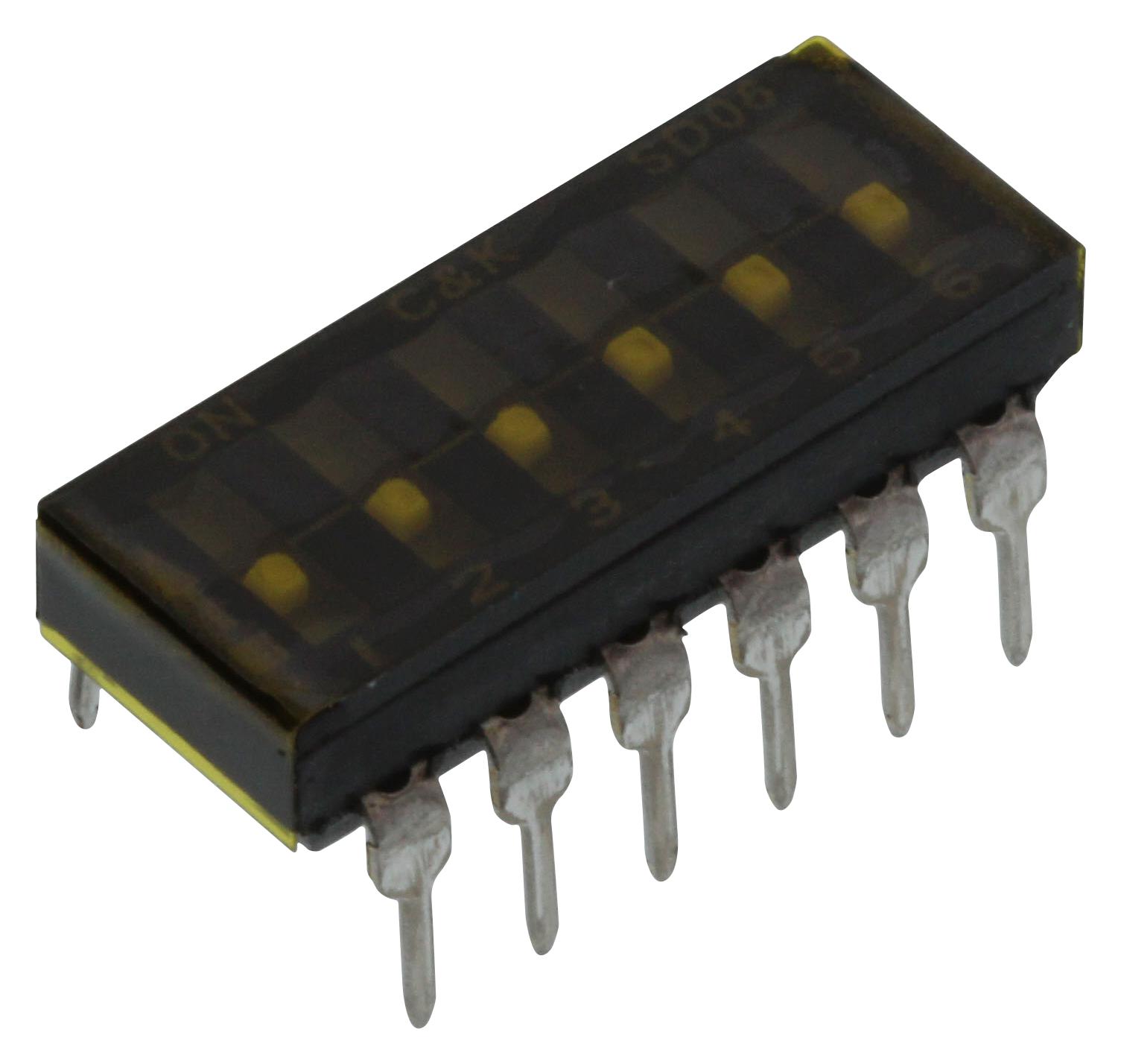

C&K COMPONENTS SD06H0B Low Profile DIP Switch
The SD Series Low Profile DIP Switches are space-saving switches designed for industrial controls and peripheral logic switching. They feature a sealed, top tape design for durability and RoHS compliance, with models available for thru-hole and surface mount applications. These switches have SPST contacts with ratings up to 100 mA @ 50 V DC and a life cycle of 2,000 cycles. Made with flame-retardant materials and gold-plated contacts, they are suitable for various electronic control systems and automation equipment.
C&K COMPONENTS SD06H0B Low Profile DIP Switch Specifications:
- Switch Function: SPST - 2 to 12 positions
- Contact Rating: 100 mA @ 50 V DC max.
- Electrical Life: 2,000 cycles
- Contact Resistance: below 50 milliohms
- Insulation Resistance: 10^9 ohms min
- Dielectric Strength: 500 V RMS
- Operating Temperature: -40°C to 85°C
- Storage Temperature: -40°C to 85°C
- Material: Flame retardant PPA case, nylon actuator, BeCu contacts with gold plating
- Terminals: Bright tin-plated brass
- Packaging: Thru-hole in tubes, surface mount in tape and reel
Buy the TechSwitch SD – Reliable DIP Switches for Industrial Applications
Purchase the TechSwitch SD Series 06 Low Profile DIP Switch online today and ensure efficient, space-saving switching for industrial controls and automation projects. Perfect for logic switching and control panels, these sealed SPST switches are RoHS compliant and designed for durability. Easy to install in thru-hole or surface mount configurations, they provide reliable operation with a long life cycle of 2,000 cycles. Ideal for engineers and technicians seeking quality components for precise control and automation equipment, available in tape and reel packaging for convenience.
Order your TechSwitch SD Series 06 Low Profile DIP Switch today and enhance your electronic control systems with dependable switching performance.
Frequently Asked Questions
Where can I buy C&K COMPONENTS SD06H0B?
You can click on the BUY or RFQ button to purchase SD06H0B from an authorized C&K COMPONENTS distributor.
How do I troubleshoot issues or seek technical support for part SD06H0B?
You can download the SD06H0B datasheet or visit the C&K COMPONENTS website for support.
Who is the manufacturer of SD06H0B?
C&K COMPONENTS
