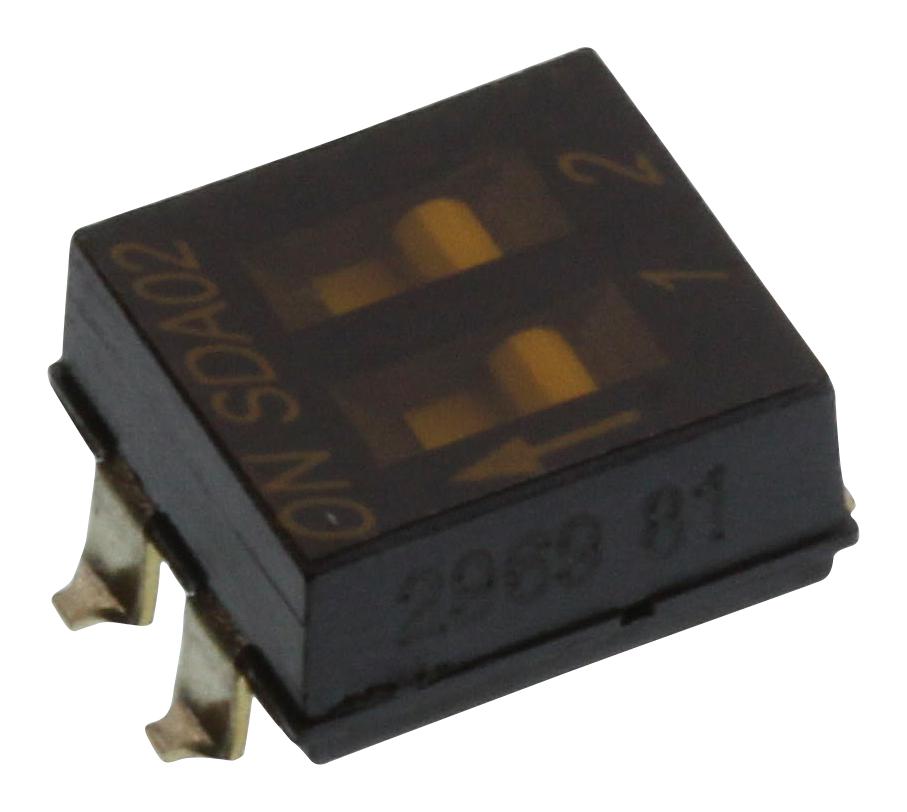

C&K COMPONENTS SDA02H0SB Low Profile DIP Switch
The SDA Series Low Profile DIP Switches feature a space-saving design suitable for various industrial and electronic applications. Available in thru-hole, surface mount, and tape and reel packaging, these switches offer reliability with a contact rating of 25 mA at 24 V DC or 100 mA at 5 V DC. They are RoHS compliant, with a mechanical and electrical life of 1,000 cycles, and operate within -40°C to 85°C. Housing material is PPS with gold-plated contacts, making them ideal for address switching, logic control, and function toggling in professional systems.
C&K COMPONENTS SDA02H0SB Low Profile DIP Switch Specifications:
- Contact Rating: 25 mA @ 24 V DC or 100 mA @ 5 V DC
- Mechanical and Electrical Life: 1,000 cycles
- Contact Resistance: 50 mΩ max. initial
- Insulation Resistance: 100 MΩ between terminals
- Dielectric Withstanding Voltage: 300 V DC min. for 1 min
- Storage Temperature: -40°C to 85°C
- Operating Temperature: -40°C to 85°C
- Operating Force: 800 grams max
- Housing: PPS, black (UL94V-0)
- Contacts: Gold plated Beryllium copper
- Terminals: Gold over nickel plated brass
- Tape Seal: Polyimide
- Dimensions vary depending on model, approx. 0.031-0.125 inches in height, with spacing options from 1 to 12 positions.
Buy the C&K Series SDA: Low Profile DIP Switches 25 mA 24 V DC 2-12 Positions
Order the C&K SDA series low profile DIP switches online today and enhance your electronic or industrial control systems. These switches are designed to save space with a compact low profile, offer dependable performance with a contact rating of 25 mA at 24 V DC, and are RoHS compliant for environmentally conscious applications. Suitable for address switching, logic control, and toggle functions, they feature durable gold-plated contacts, flexible package options including tape and reel, and operate reliably from -40°C to 85°C. Get yours now for seamless integration and long-lasting service.
Buy C&K SDA series low profile DIP switches now and experience unmatched reliability and performance for industrial and electronic control solutions.
