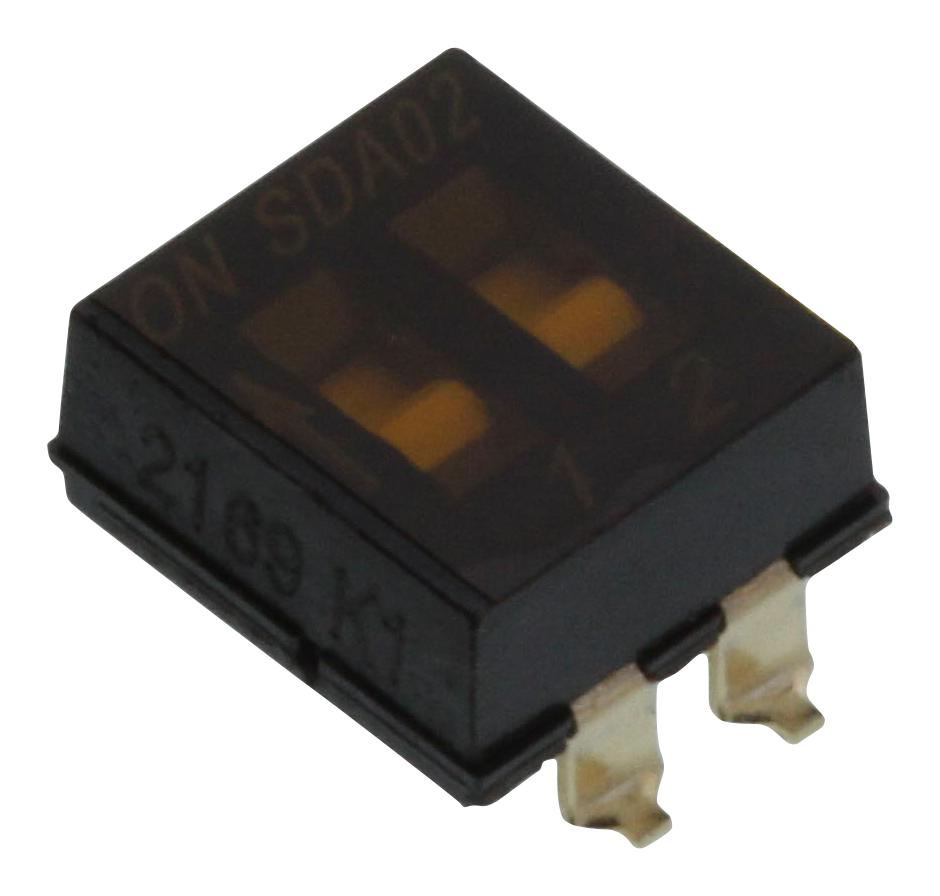

C&K COMPONENTS SDA02H0SBR Low Profile DIP Switch
The SDA Series Low Profile DIP Switches are space-saving, reliable electronic switches suitable for industrial controls, computer logic, and consumer applications. They feature various actuation styles including flush, extended, and surface mount options, with tape and reel packaging available for surface mount models. These switches offer a contact rating of 25 mA @ 24 V DC, with a life cycle of 1,000 cycles, and are RoHS compliant. Made with durable materials like gold-plated contacts and UL94V-0 housing, they deliver consistent performance in tight spaces and harsh environments, ensuring long-lasting operation.
C&K COMPONENTS SDA02H0SBR Low Profile DIP Switch Specifications:
- Contact Rating: 25 mA @ 24 V DC or 100 mA @ 5 V DC
- Mechanical and Electrical Life: 1,000 cycles at rated loads
- Contact Resistance: 50 mΩ max initial
- Insulation Resistance: 100 MΩ between terminals
- Dielectric Withstanding Voltage: 300 V DC min. for 1 minute
- Storage Temperature: -40°C to 85°C
- Operating Temperature: -40°C to 85°C
- Operating Force: 800 grams max
- Housing: PPS, black (UL94V-0)
- Contacts: Gold plated Beryllium copper
- Terminals: Gold over nickel plated brass
- Tape Seal: Polyimide
- Dimensions: Variations based on model, typical length 0.8 to 1.3 inches, width 0.25 to 0.61 inches, height approximately 0.31 to 0.78 inches
- Packaging: Rigid tubes, tape and reel options for surface mount, quantities vary with model
Buy the Buy C&K Low Profile DIP Switch Part Number SDA02H0SBR Online
Purchase C&K Low Profile DIP Switch SDA02H0SBR online today—designed for space-saving applications, easy mounting, and long-lasting reliability. Ideal for industrial controls, consumer electronics, and logic switching, these switches feature gold-plated contacts, durable housing, and multiple actuation options. Available in tape and reel packaging, they ensure quick and convenient integration into your project. Whether you need through-hole or surface mount models, buy now to benefit from competitive pricing, fast shipping, and trusted quality for your electronics assembly and control applications.
Get C&K SDA02H0SBR today—built for space-efficient installation and reliable switching performance in industrial and consumer electronics.
Frequently Asked Questions
Where can I buy C&K COMPONENTS SDA02H0SBR?
You can click on the BUY or RFQ button to purchase SDA02H0SBR from an authorized C&K COMPONENTS distributor.
How do I troubleshoot issues or seek technical support for part SDA02H0SBR?
You can download the SDA02H0SBR datasheet or visit the C&K COMPONENTS website for support.
Who is the manufacturer of SDA02H0SBR?
C&K COMPONENTS
