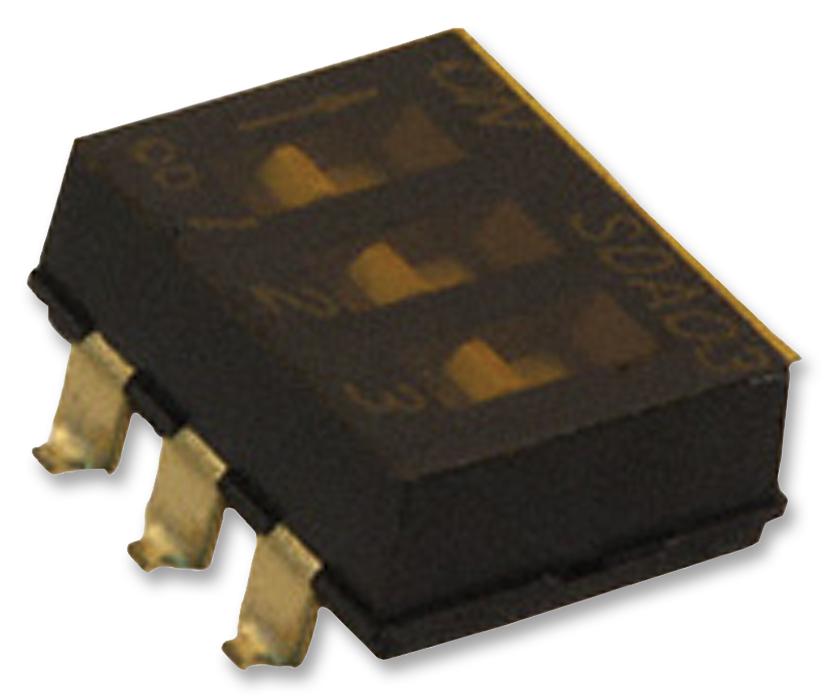

C&K COMPONENTS SDA03H0SBR Low Profile DIP Switch
Low Profile DIP switches with space-saving design, suitable for industrial controls, computer logic, and function control applications. Available in thru-hole and surface mount models, these switches feature gold-plated contacts, a wide temperature range of -40°C to 85°C, and a 25 mA at 24 V DC or 100 mA at 5 V DC contact rating. They offer reliable mechanical and electrical life of 1,000 cycles, with a dielectric withstand voltage of 300 V DC, and come in various actuator and termination options for customizable use in compact electronic assemblies.
C&K COMPONENTS SDA03H0SBR Low Profile DIP Switch Specifications:
- Contact Rating: 25 mA @ 24 V DC or 100 mA @ 5 V DC
- Mechanical and Electrical Life: 1,000 cycles
- Contact Resistance: 50 mΩ max. initial
- Insulation Resistance: 100 MΩ between terminals
- Dielectric Withstanding Voltage: 300 V DC min. for 1 minute
- Storage Temperature: -40°C to 85°C
- Operating Temperature: -40°C to 85°C
- Operating Force: 800 grams max
- Housing Material: PPS, black (UL94V-0)
- Contacts: Gold-plated Beryllium copper
- Terminals: Gold plated over nickel plated brass
- Solderability: Dip and look solderability testing per C&K spec. #448
Buy the C&K Series Low Profile DIP Switch: SDA03H0SBR
Order C&K SDA03H0SBR low profile DIP switch online today and benefit from space-saving design, high durability with a 1,000-cycle life, and customizable configurations including through-hole and surface mount options. Perfect for industrial controls, computing, and electronic applications, these switches feature gold-plated contacts, a wide temperature range, and reliable dielectric withstand voltage. Designed for easy installation in compact electronic assemblies, they ensure consistent performance and long-lasting operation for your demanding automation and control needs.
Buy C&K SDA03H0SBR low profile DIP switch now and experience unmatched reliability and performance for space-efficient switching solutions.
Frequently Asked Questions
Where can I buy C&K COMPONENTS SDA03H0SBR?
You can click on the BUY or RFQ button to purchase SDA03H0SBR from an authorized C&K COMPONENTS distributor.
How do I troubleshoot issues or seek technical support for part SDA03H0SBR?
You can download the SDA03H0SBR datasheet or visit the C&K COMPONENTS website for support.
Who is the manufacturer of SDA03H0SBR?
C&K COMPONENTS
