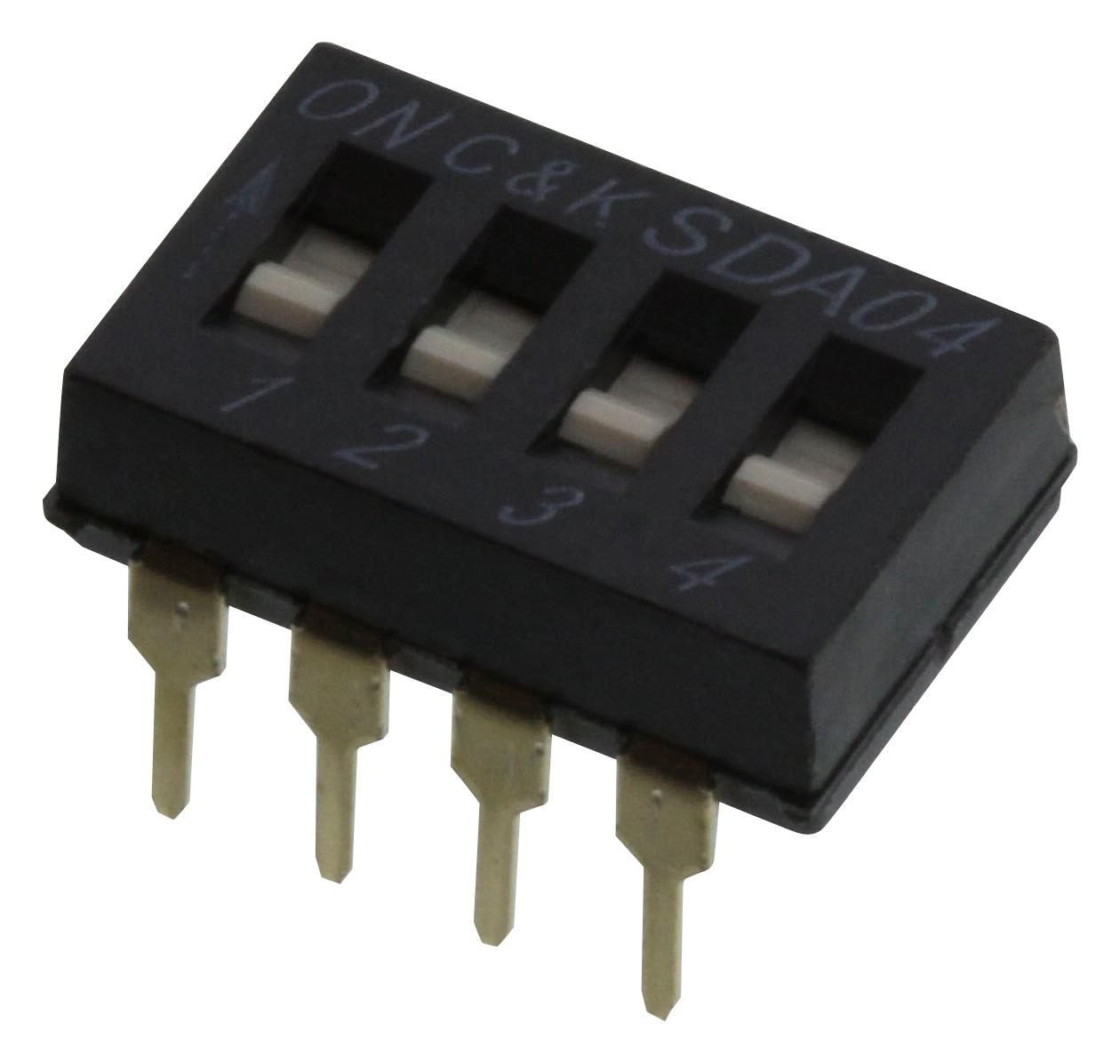

C&K COMPONENTS SDA04H0BD Low Profile DIP Switch
The SDA Series low profile DIP switches are space-saving, versatile switches suitable for address configuration in industrial controls, logic switching in computers, and control applications. They feature a compact design with thru-hole and surface mount options, RoHS compliance, and robust materials including gold-plated contacts and durable housing. These switches offer reliable electrical performance with a contact rating of up to 25 mA at 24 V DC, an electrical life of 1,000 cycles, and a wide operating temperature range from -40°C to 85°C. Ideal for panel or PCB mounting, they provide easy installation and long-lasting durability.
C&K COMPONENTS SDA04H0BD Low Profile DIP Switch Specifications:
- Contact Rating: 25 mA @ 24 V DC or 100 mA @ 5 V DC
- Mechanical and Electrical Life: 1,000 cycles at rated loads
- Contact Resistance: 50 mΩ max initial
- Insulation Resistance: 100 MΩ between terminals
- Dielectric Withstanding Voltage: 300 V DC min. for 1 minute
- Storage Temperature: -40°C to 85°C
- Operating Temperature: -40°C to 85°C
- Operating Force: 800 grams max
- Housing Material: PPS, black (UL94V-0)
- Contacts: Gold plated Beryllium copper
- Terminals: Gold plate over nickel plated brass
- Solderability: Dip and look solderability per C&K specification #448
- Packaging: Full-tube or tape and reel options for surface mount
- Dimensions: various depending on configuration, typical width approximately 0.8 inches (20 mm), height 0.4 inches (10 mm), length varies with positions
- Material: PPS housing, PAGT actuator, gold-plated contacts, nickel-plated brass terminals
- Type: Low profile DIP switch, thru-hole, surface mount options available
Buy the CK Series SDA: Low Profile DIP Switches: SDA04H0BD
Purchase CK SDA04H0BD low profile DIP switches online today for space-efficient panel and PCB control solutions. Designed for durability, these switches offer excellent electrical ratings, long cycle life, and a wide temperature range. Ideal for industrial controls, logic switching, and function management, they feature robust materials including gold-plated contacts and high-quality housing. Easy to install via thru-hole or surface mount, ensuring reliable operation in demanding environments. Order now to ensure your projects stay on schedule with top-grade components.
Get CK SDA04H0BD today—built for space-saving applications and reliable performance.
Frequently Asked Questions
Where can I buy C&K COMPONENTS SDA04H0BD?
You can click on the BUY or RFQ button to purchase SDA04H0BD from an authorized C&K COMPONENTS distributor.
How do I troubleshoot issues or seek technical support for part SDA04H0BD?
You can download the SDA04H0BD datasheet or visit the C&K COMPONENTS website for support.
Who is the manufacturer of SDA04H0BD?
C&K COMPONENTS
