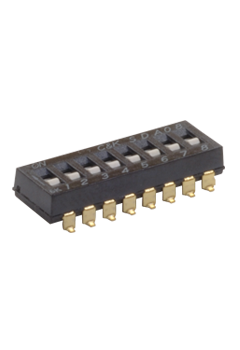

C&K COMPONENTS SDA08H1SBDR Low Profile DIP Switch
The C&K SDA series low-profile DIP switches are designed for applications where space is at a premium. These switches feature a compact design, available in both thru-hole and surface mount configurations, and are RoHS compliant. They are commonly used in industrial controls for address switching, logic switching in computers and peripherals, and function controlling across various applications. The switches offer a mechanical and electrical life of 1,000 cycles at rated loads, with gold-plated contacts for reliable performance. The 'Build-A-Switch' concept allows for customization to meet specific application requirements.
C&K COMPONENTS SDA08H1SBDR Low Profile DIP Switch Specifications:
- contact_rating: 25 mA @ 24 V DC or 100 mA @ 5 V DC
- mechanical_and_electrical_life: 1,000 cycles at rated loads
- contact_resistance: 50 mΩ max. initial
- insulation_resistance: 100 MΩ between terminals
- dielectric_withstanding_voltage: 300 V DC min. for 1 minute
- storage_temperature: -40°C to 85°C
- housing_material: PPS, color black (UL94V-0)
- cover_material: PPS, color black (UL94V-0)
- actuator_material: PA6T (UL94-0)
- contact_material: Gold plated Beryllium copper
- terminal_material: Gold plate over nickel plated brass
- tape_seal_material: Polyimide
- operating_temperature: -40°C to 85°C
- operating_force: 800 grams max
- solderability: Dip and look solderability testing per C&K spec. #448
- packaging: Switches supplied in rigid dispensing tubes in fulltube quantities only
Buy the SDA08H1SBDR C&K COMPONENTS Low Profile DIP Switch | myMectronic
Purchase the C&K SDA08H1SBDR DIP switch securely and efficiently online.
Buy Now
Frequently Asked Questions
Where can I buy C&K COMPONENTS SDA08H1SBDR?
You can click on the BUY or RFQ button to purchase SDA08H1SBDR from an authorized C&K COMPONENTS distributor.
How do I troubleshoot issues or seek technical support for part SDA08H1SBDR?
You can download the SDA08H1SBDR datasheet or visit the C&K COMPONENTS website for support.
Who is the manufacturer of SDA08H1SBDR?
C&K COMPONENTS
