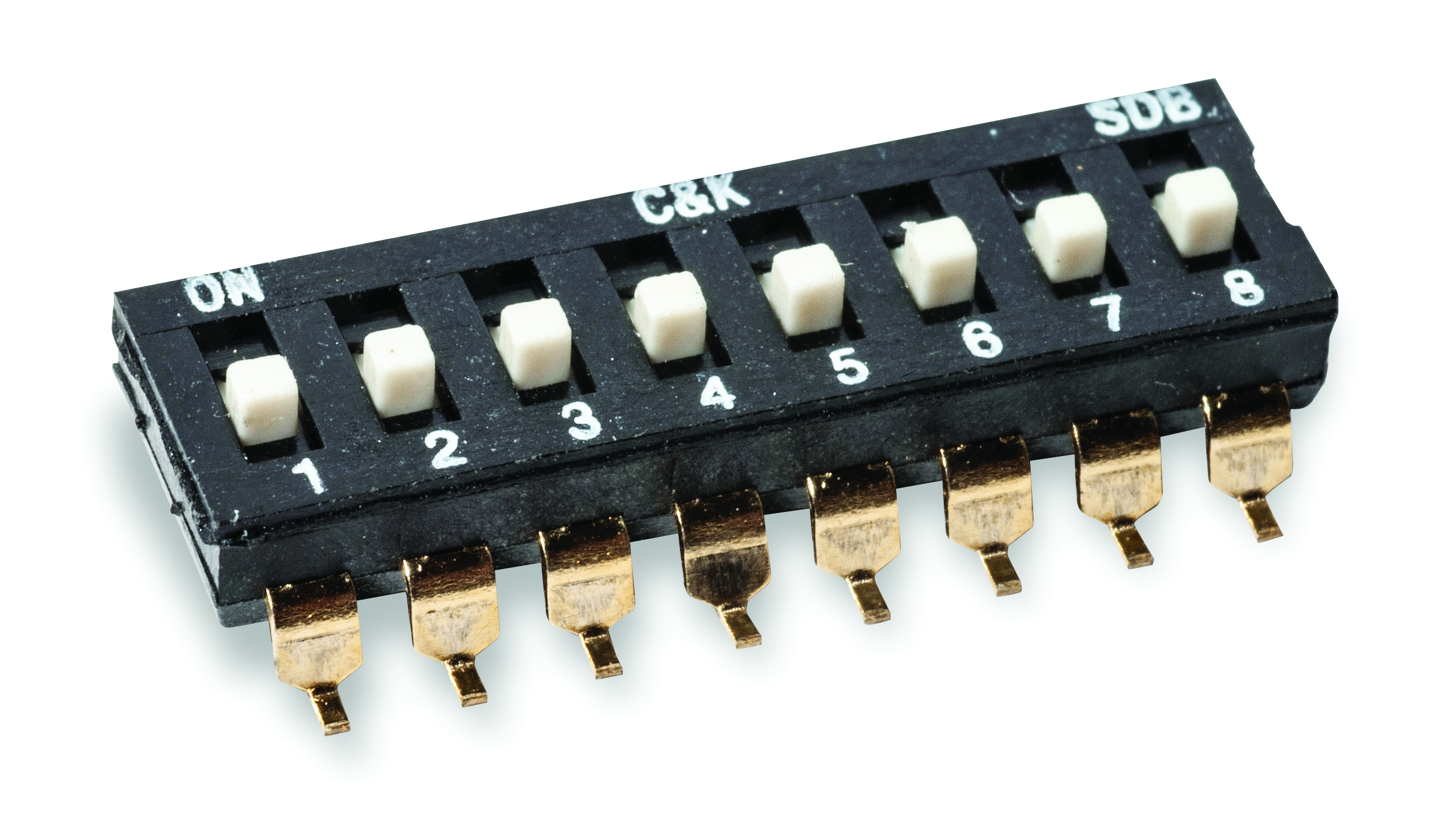

C&K COMPONENTS SDB06H1BD Low Profile DIP Switch
The C&K Components SDB series low-profile DIP switches offer a compact solution for various applications. These switches are designed with a low-profile configuration to save space and are available in both thru-hole and surface mount models. They are RoHS compliant and suitable for industrial controls, logic switching in computers and peripherals, and function controlling in numerous applications. The switches are supplied in rigid dispensing tubes or tape and reel packaging, offering flexibility in order quantities.
C&K COMPONENTS SDB06H1BD Low Profile DIP Switch Specifications:
- Contact Rating: 25 mA @ 24 V DC or 100 mA @ 5 V DC
- Mechanical and Electrical Life: 1,000 cycles at rated loads
- Contact Resistance: 50 mΩ max. initial
- Insulation Resistance: 1000 MΩ between terminals
- Dielectric Withstanding Voltage: 300 V DC min. for 1 minute
- Housing Material: PA46, color black (UL94V-0)
- Cover Material: PA46, color black (UL94V-0)
- Actuator Material: PA46, color white (UL94V-0)
- Contact Material: Gold plated phosphor bronze
- Terminal Material: Gold plate over nickel plated brass
- Tape Seal Material: PI with Silicon coated
- Storage Temperature: -40°C to 85°C
- Operating Temperature: -40°C to 85°C
- Operating Force: 8N max
- Solderability: Dip and look solderability testing per C&K spec. #448
