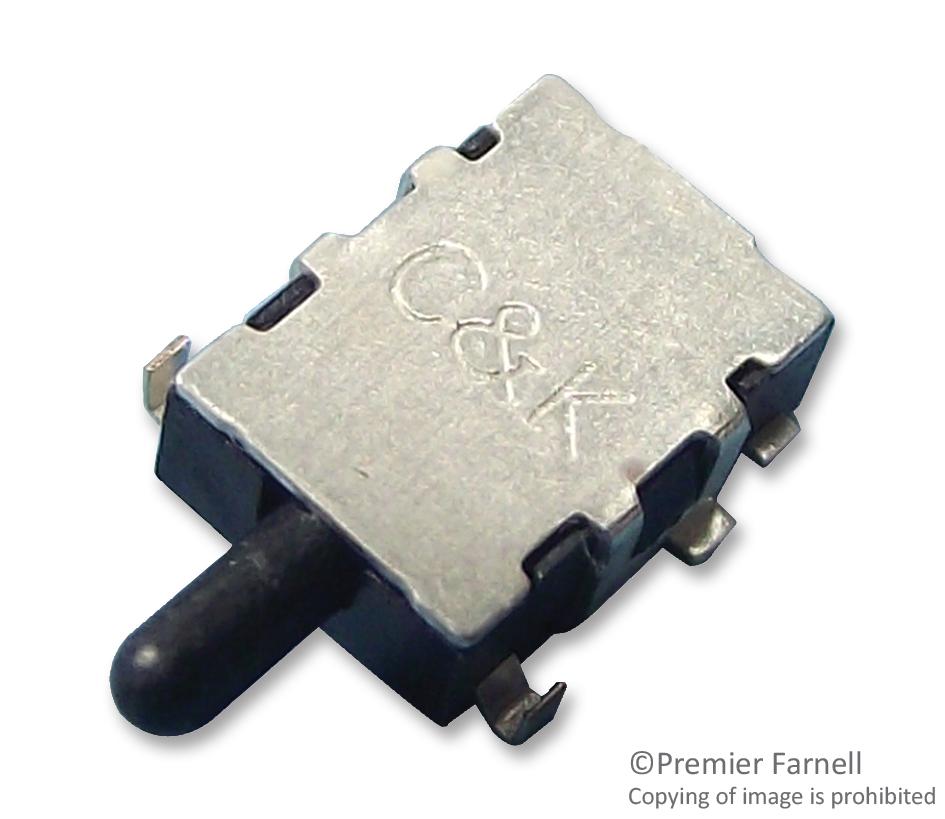

C&K COMPONENTS SDS001R Detect Switch
The SDS Series Side Actuated Detect Switches are low-profile, reliable, and cost-effective solutions for detecting and controlling applications in medical devices, consumer electronics, PCB lock mechanisms, smart cards, and telecom equipment. These switches feature a 2mm overtravel, low actuation force of 75 grams, and a compact design that sits just 2mm off the PCB. Constructed with high-quality materials such as glass-filled LCP and phosphor bronze contacts, they offer a mechanical and electrical life of 50,000 cycles, ensuring durability and long-term performance in various operating conditions.
C&K COMPONENTS SDS001R Detect Switch Specifications:
- Contact Rating: 100 mA @ 12 VDC
- Mechanical & Electrical Life: 50,000 cycles
- Contact Resistance: 100 mΩ max initial
- Insulation Resistance: 10 MΩ min @ 100 VDC
- Operating Temperature: -40°C to +85°C
- Solderability: IR compatible, no wash, 260°C max
- Base & Actuator Material: Glass filled LCP (UL 94V-0)
- Surface Plate: Nickel silver with silver plating
- Movable & Terminals: Phosphor bronze with specified plating
- Packaging: Bulk or tape & reel (3000 per reel)
Buy the C&K SDS001R – Reliable Detect Switches for Industrial Applications
Order the C&K SDS001R detect switch online today to ensure dependable operation in your medical, consumer, or telecom devices. These low-profile switches feature a 2mm overtravel and 75g actuation force, offering durability with 50,000 cycles of mechanical and electrical life. Their high-quality materials, including glass-filled LCP and plated bronze contacts, provide excellent corrosion resistance and operational stability across temperatures from -40°C to +85°C. Designed for easy pick & place, they are available in bulk and tape & reel packaging for efficient manufacturing and assembly.
Buy C&K SDS001R now and experience unmatched reliability and performance for detector and control applications.
Frequently Asked Questions
Where can I buy C&K COMPONENTS SDS001R?
You can click on the BUY or RFQ button to purchase SDS001R from an authorized C&K COMPONENTS distributor.
How do I troubleshoot issues or seek technical support for part SDS001R?
You can download the SDS001R datasheet or visit the C&K COMPONENTS website for support.
Who is the manufacturer of SDS001R?
C&K COMPONENTS
