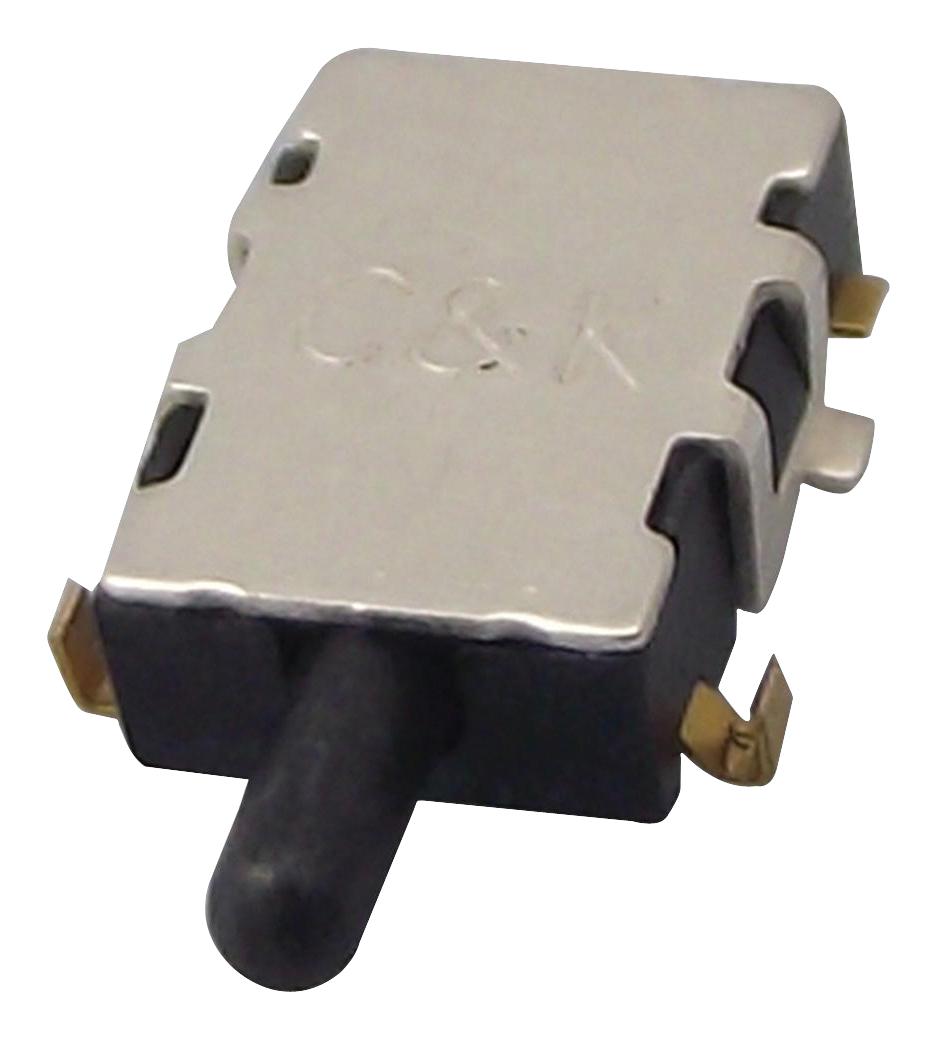

C&K COMPONENTS SDS004R Detect Switch
The SDS Series side actuated detect switches are low-profile components designed for detecting applications with minimal space requirements. With a 2mm profile and overtravel suited for detector functions, they provide reliable performance with low actuation force of 75 grams. These switches feature a contact rating of 100 mA at 12 VDC, a mechanical and electrical lifespan of 50,000 cycles, and operate within -40°C to +85°C. Constructed with glass-filled LCP and phosphor bronze contacts, they are suitable for medical, consumer electronics, and communication applications. Available in bulk or tape & reel packaging, these ROHS-compliant switches are pick & place compatible for efficient manufacturing.
C&K COMPONENTS SDS004R Detect Switch Specifications:
- Contact Rating: 100 mA @ 12 VDC
- Mechanical & Electrical Life: 50,000 cycles
- Contact Resistance: 100 mΩ max initial
- Insulation Resistance: 10 MΩ min. @ 100 VDC
- Operating Temperature: -40°C to +85°C
- Solderability: IR compatible, no wash, max 260°C
- Materials: Base and actuator - Glass filled LCP (UL 94V-0); Surface plate - Nickel silver with silver plating; Movable and terminal contacts - Phosphor bronze with plating
- Packaging: Bulk or tape & reel (3000 per reel)
Buy the Buy RoHS Compliant Detect Switch Part Number SDS004R Online
Order the SDS series detect switches online today and benefit from their compact 2mm profile, low 75g actuation force, and high durability of 50,000 cycles. These reliable switches are suitable for medical devices, consumer electronics, PCB lock detection, and smart card applications. Featuring a contact rating of 100 mA at 12 VDC, they operate efficiently within -40°C to +85°C. Compatible with pick & place manufacturing, packaged in bulk or tape & reel, and made from high-quality UL 94V-0 rated materials for optimal safety and performance.
Buy RoHS compliant SDS004R detect switch now and ensure reliable space-efficient detection for your electronics with a 50,000 cycle lifespan.
Frequently Asked Questions
Where can I buy C&K COMPONENTS SDS004R?
You can click on the BUY or RFQ button to purchase SDS004R from an authorized C&K COMPONENTS distributor.
How do I troubleshoot issues or seek technical support for part SDS004R?
You can download the SDS004R datasheet or visit the C&K COMPONENTS website for support.
Who is the manufacturer of SDS004R?
C&K COMPONENTS
