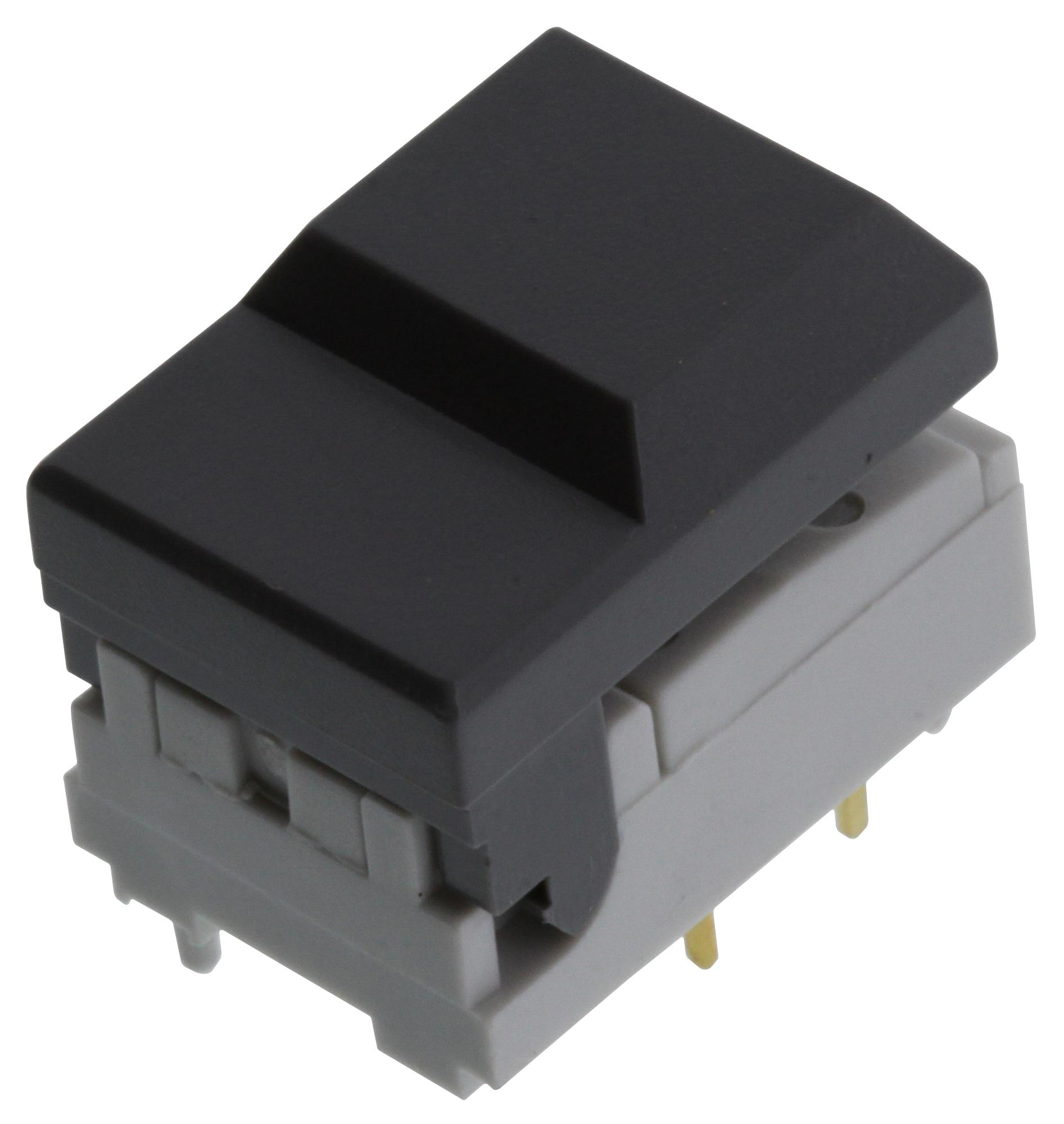

C&K COMPONENTS SERGYAUOA Microminiature SPDT Key Switches
The DIGITAST microminiature SPDT key switches are highly reliable, long-lasting switches designed for low-level switching applications in medical, instrumentation, industrial electronics, and audio electronics. They feature momentary or push-push operation, with optional latching function, multiple button styles and colors, and RoHS compliance. Constructed with PC pin terminals, they support soldering and are compatible with lead-free profiles, providing high dielectric strength and low contact resistance. They are ideal for PCB implementation, offering durability with over 5 x 10^5 operations and operating temperatures from -25°C to 85°C.
C&K COMPONENTS SERGYAUOA Microminiature SPDT Key Switches Specifications:
- Function: momentary or push-push operation
- Switching Power Max: 240 mW DC
- Switching Voltage Max: 24 V DC
- Switching Current Max: 10 mA DC
- Carrying Current at 20°C: 100 mA
- Contact Resistance: Initial < 50 mΩ, After 5 x 10^5 operations < 100 mΩ
- Dielectric Strength: 500 V (50 Hz, 1 min)
- Total Travel: < 3.0 mm
- Switching Travel: 1.5 mm
- Latching Travel: 1.8 mm
- Operating Force: 1.5 +/- 0.5 N (150 +/- 50 grams)
- Operating Temperature Range: -25°C to 85°C
- Solderability: Compatible with wave and hand soldering
- Bounce Time: < 2.5 ms
- Built for PCB mounting with soldering terminals
- Durability: > 5 x 10^5 operations with or without max switching power
Buy the Digitast Microminiature SPDT – Reliable Key Switches for Industrial Applications
Order Digitast microminiature SPDT key switches online today to enhance your industrial, medical, and instrumentation equipment. These switches offer long life, high reliability, versatile button options, and RoHS compliance. Perfect for PCB mounting, they support low-level switching with a maximum power of 240 mW and switching voltage of 24 V DC. Designed to endure over 500,000 operations, they function reliably in temperatures from -25°C to 85°C. Choose these compact, durable switches for your electronic applications and enjoy seamless installation and operation.
Buy Digitast microminiature SPDT key switches now and experience unmatched reliability, long operational life, and versatile design options for your electronic projects.
Frequently Asked Questions
Where can I buy C&K COMPONENTS SERGYAUOA?
You can click on the BUY or RFQ button to purchase SERGYAUOA from an authorized C&K COMPONENTS distributor.
How do I troubleshoot issues or seek technical support for part SERGYAUOA?
You can download the SERGYAUOA datasheet or visit the C&K COMPONENTS website for support.
Who is the manufacturer of SERGYAUOA?
C&K COMPONENTS
