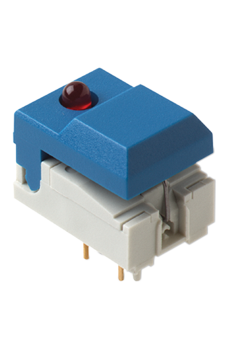

C&K COMPONENTS SET2LBKRDGNAUEE SPDT Key Switch
The C&K COMPONENTS SET2LBKRDGNAUEE is a microminiature SPDT key switch offering a compact and reliable solution for various applications. Designed with high reliability and long life in mind, this switch is ideal for medical devices, instrumentation, industrial electronics, and audio electronics. It features a latching function, several button options, and is ready to implement on a PCB. The switch is RoHS compliant and offers a variety of configurations to meet specific design requirements, including different button colors and LED options. Its compact size and ease of integration make it a versatile choice for a wide range of electronic devices.
C&K COMPONENTS SET2LBKRDGNAUEE SPDT Key Switch Specifications:
- Function: Momentary or push-push
- Contact Arrangement: 1 change over contact SPDT
- Switching Power Max: 240 mW DC
- Switching Voltage Max: 24 V DC
- Switching Current Max: 10 mA DC
- Carrying Current at 20°C (push-push version): 100 mA
- Dielectric Strength (50 Hz, 1 min): 500 V
- Operating Life: ≥ 5 x 10^6 operations (momentary), ≥ 5 x 10^5 operations (push-push)
- Contact Resistance: Initial: ≤ 50 mΩ, After 5 x 10^6 operations: ≤ 100 mΩ
- Insulation Resistance: ≥ 10^10 Ω
- Capacitance at f= 10 kHz: ≤ 0.8pF
- Bounce Time: ≤ 2.5 ms
- Operating Speed: 400 mm/s (15.75/s)
- Horizontal Minimum: 12.7 (0.500) or 17.78 (0.700)
- Vertical Minimum: 17.78 (0.700)
- Terminals: PC pins
- Mounting: Soldering, centering pins
- Total Travel: ≤ 3 (.0018)
- Switching Travel: 1.5 (0.0591)
- Latching Travel: 1.8 (0.0709)
- Operating Force: 1.5 +/- 0.5 N (150 +/- 50 grams)
- Operating Temperature: -25˚C to 85˚C
- Solderability: Wave soldering (lead-free compatible), Hand soldering (350˚C for 3 seconds)
