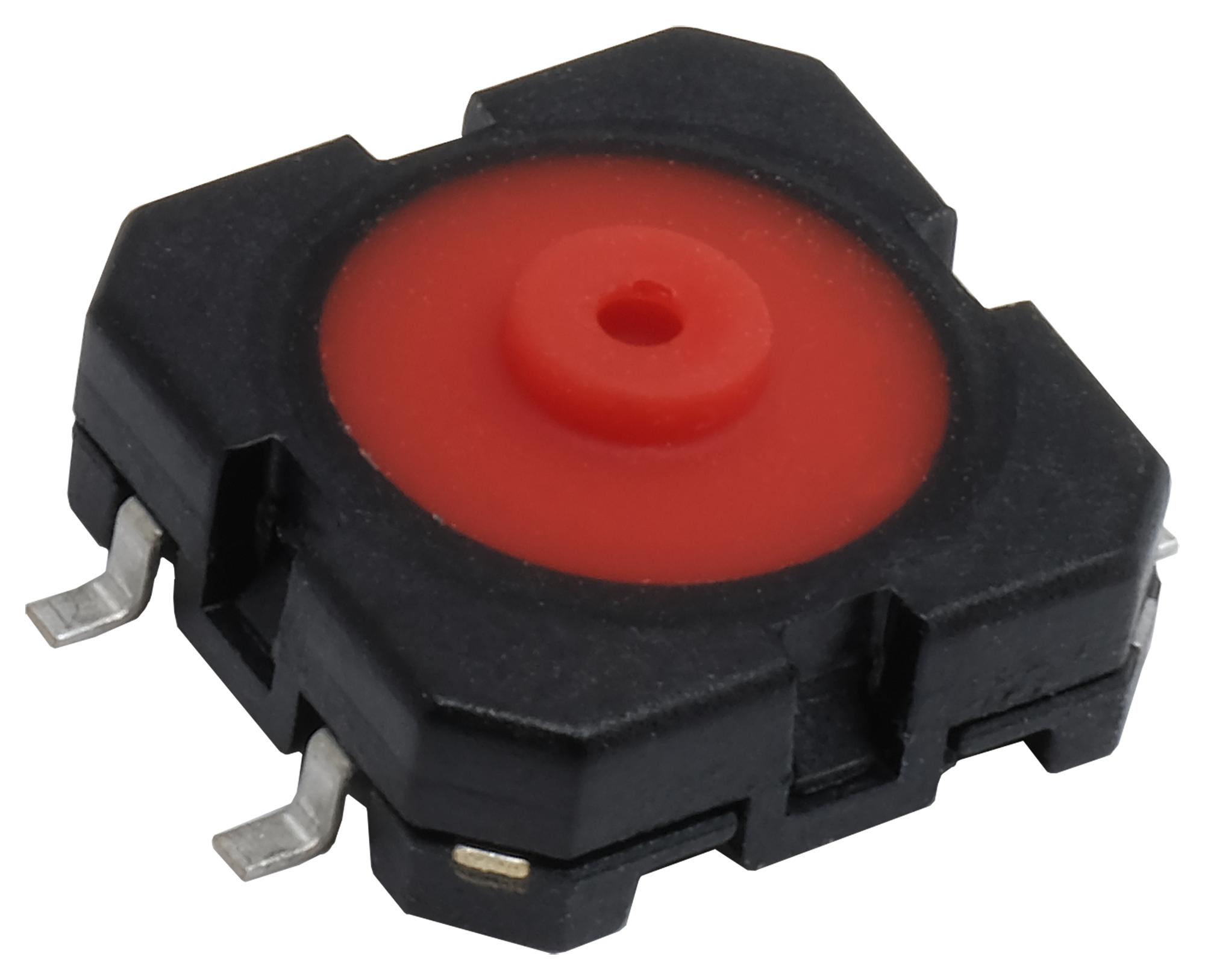

C&K COMPONENTS SFS12FSSMTRLFS Mid-Travel Tact Switch
The SFS Series mid-travel tact switches are designed for precise control in measurement, monitoring, automotive, medical, and navigation systems. Featuring a 12x12 mm size, sealed contact system, and gold-plated terminals, these switches offer reliable, soft actuation with three different actuation forces of 360 gf, 680 gf, and 970 gf. They support SMT or through-hole mounting and operate within -40°C to +90°C. With a lifespan of up to 1 million cycles without load, they are ideal for applications demanding durability and precision.
C&K COMPONENTS SFS12FSSMTRLFS Mid-Travel Tact Switch Specifications:
- Construction size: 12x12 mm
- Operation: Momentary action
- Max Voltage: 35 VDC
- Max Current: 100 mA
- Max Power: 1 W
- Contact Resistance: 100 mΩ
- Insulation Resistance: 1000 MΩ min.
- Dielectric Voltage: < 0.5 mA
- Operating Temperature: -40°C to +90°C
- Storage Temperature: -40°C to +80°C
- Operating Life: 300,000 cycles with load, 1,000,000 cycles without load
- Mounting: SMT or through-hole
- Travel: 0.2 mm
- Force Options: 360 gf, 680 gf, 970 gf
- Packaging: 700 pieces per reel, 58 pieces per tube
Buy the CK Switches SFS12XS2T – Reliable Tactile Switch for Industrial Applications
Purchase the CK Series SFS12XS2T tact switches online to ensure reliable performance in measurement, automotive, medical, and navigation systems. These switches feature sealed contacts, gold plating, and three actuation forces of 360 gf, 680 gf, and 970 gf, offering precise control and long lifespan up to 1 million cycles. Suitable for SMT or through-hole mounting, their compact size of 12x12 mm makes them ideal for space-limited applications. Avail fast delivery and exceptional quality in every order.
Order your CK Series SFS12XS2T mid-travel tact switch today and enhance your control systems with durable, high-quality switches designed for demanding environments.
Frequently Asked Questions
Where can I buy C&K COMPONENTS SFS12FSSMTRLFS?
You can click on the BUY or RFQ button to purchase SFS12FSSMTRLFS from an authorized C&K COMPONENTS distributor.
How do I troubleshoot issues or seek technical support for part SFS12FSSMTRLFS?
You can download the SFS12FSSMTRLFS datasheet or visit the C&K COMPONENTS website for support.
Who is the manufacturer of SFS12FSSMTRLFS?
C&K COMPONENTS
