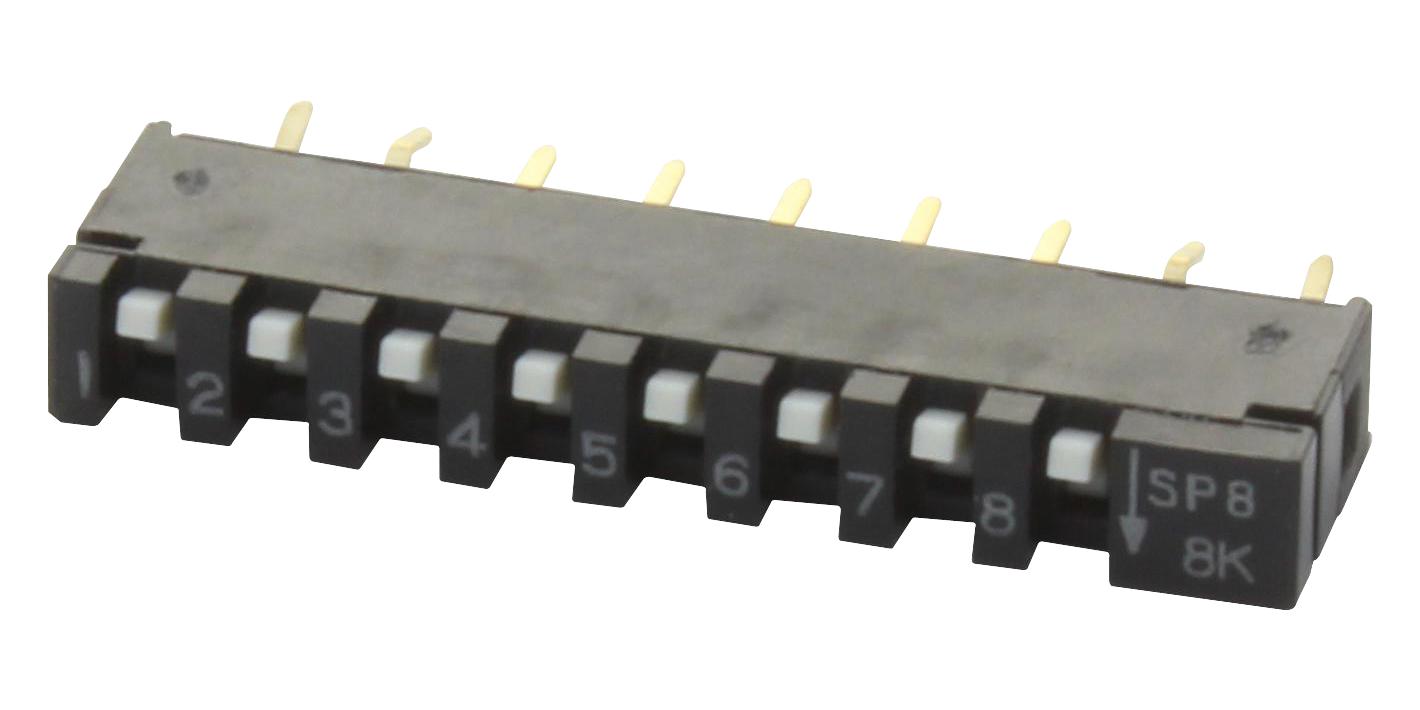

C&K COMPONENTS SPA08B 8-Position In-line Switch
The SPA Series 8-position single in-line package switch features a compact design that saves PCB space. It includes a retention mechanism to secure the component to the PCB prior to soldering, with vertical terminal connections for efficient wiring. The switch offers a mechanical and electrical lifespan of at least 1,000 cycles, with an insulation resistance of at least 100 MΩ at 100 VDC and a contact resistance no greater than 50 mΩ at 20 VDC and 10 mA. It has a dielectric strength of 1 minute at 300 VAC, suitable for industrial controls, computer, and peripheral address switching applications.
C&K COMPONENTS SPA08B 8-Position In-line Switch Specifications:
- Contact Rating: Carry: 10 mA @ 5VDC, Switching: 0.1 mA @ 0.1m VDC min.
- Mechanical and Electrical Life: 1,000 cycles min.
- Contact Resistance: 50 mΩ max. @ 20 V DC 10 mA.
- Insulation Resistance: 100 MΩ min. @ 100 V DC.
- Dielectric Strength: 1 min @ 300 V AC.
- Capacitance: 5 pF max. between adjacent terminals.
- Operating Temperature: -30°C to 60°C.
- Storage Temperature: -30°C to 80°C.
- Operating Force: 5.9 N max.
- Base: PPS (UL94V-0).
- Cover: PBT (UL94V-0).
- Actuator: 4/6 Nylon (UL 94V-0).
- Movable Contact: Beryllium copper alloy, gold over nickel plate.
- Fixed Contact: Copper alloy, gold over nickel plate.
- Solderability: Dip & look solderability per C&K spec.
- Dimensions vary by model, typical size around 0.4 inches (10.16 mm).
Buy the CK Switches SPA Series 8-position Reliable Industrial Switch for Control Applications
Purchase the CK SPA Series 8-position in-line switch online today to enjoy reliable performance for industrial controls, computer peripherals, and remote switching. This compact switch offers high cycle life, excellent insulation resistance, and RoHS compliance, making it perfect for demanding applications. Easy to install with vertical terminal options, it ensures long-lasting durability and precise control in various electronic and industrial systems. Order now and enhance your control solutions with proven switch technology.
Get CK Switches SPA Series 8-position switch today—built for precision, high durability, and reliable switching in industrial control systems.
Frequently Asked Questions
Where can I buy C&K COMPONENTS SPA08B?
You can click on the BUY or RFQ button to purchase SPA08B from an authorized C&K COMPONENTS distributor.
How do I troubleshoot issues or seek technical support for part SPA08B?
You can download the SPA08B datasheet or visit the C&K COMPONENTS website for support.
Who is the manufacturer of SPA08B?
C&K COMPONENTS
