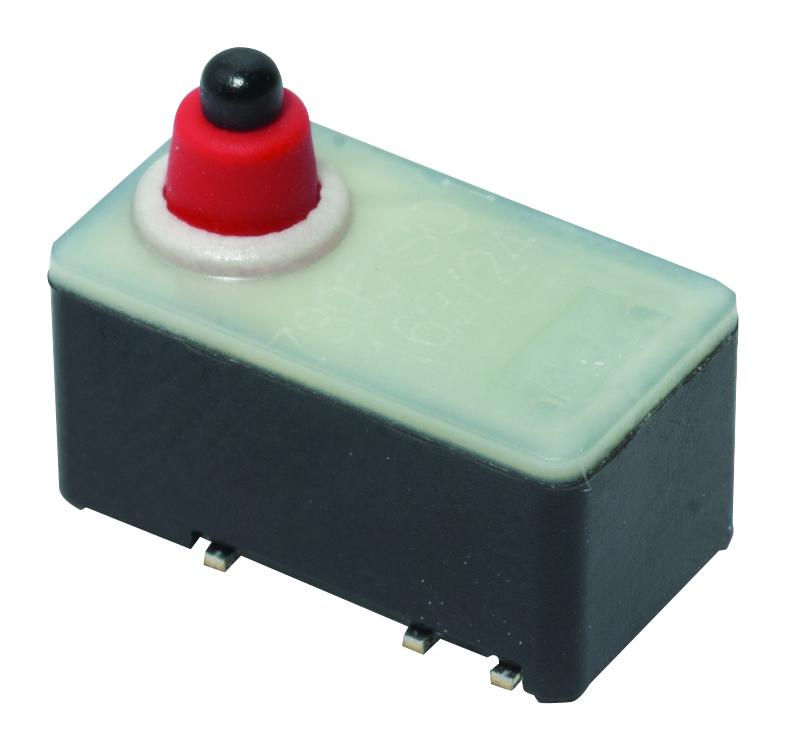

C&K COMPONENTS SSW115S Detect Switch
The SMT Subminiature Detect Switches are compact, IP67 sealed switches suitable for automotive and safety applications. These switches feature change over time in less than 15ms, with a non-shorting switching mode, silver-plated terminals, and a mechanical life of up to 300,000 cycles. They operate reliably from -40°C to 85°C and are designed for surface-mount soldering, including infrared reflow. The switches have a DPDT contact arrangement, side and top actuation, and are packaged in reels of 900 pieces, making them ideal for high-volume manufacturing of electronic parking brakes and by-wire systems.
C&K COMPONENTS SSW115S Detect Switch Specifications:
- Function: momentary action
- Contact Arrangement: 2 change over contacts = DPDT
- Switching Mode: non-shorting
- Operating Temperature: -40°C to 85°C
- Storage Temperature: -40°C to 85°C
- Sealing: IP67
- Terminals: SMD terminals, silver plated
- Shear Force Resistance: 40N
- Maximum Power: 0.36 W
- Maximum Voltage: 18 VDC
- Minimum Voltage: 5V
- Maximum Current: 20 mA
- Minimum Current: 1 mA
- Dielectric Strength: > 250 V (50 Hz, 1 min.)
- Insulation Resistance: > 100 MΩ (100 V)
- Changeover Time: < 15ms
- Dimensions vary, with actuator height approximately 12.2 mm, terminal length about 8.3 mm, and reel dimensions of 560 mm diameter.
Buy the C&K Series SSW Detect Switch: SSW115S
Order the C&K SSW115S detect switch online today to ensure your electronic safety and control systems function reliably. These compact surface-mount switches are IP67 sealed, supporting demanding environments from -40°C to 85°C. With a quick changeover time of less than 15ms, silver-plated terminals, and durable construction, they are ideal for automotive and automation applications. Reels containing 900 units facilitate large-scale manufacturing, making it easy to integrate high-quality, reliable switches into your designs while optimizing production efficiency. Purchase now for top performance and reliability.
Buy C&K SSW115S now and experience unmatched reliability and performance in automotive safety and electronic control applications.
Frequently Asked Questions
Where can I buy C&K COMPONENTS SSW115S?
You can click on the BUY or RFQ button to purchase SSW115S from an authorized C&K COMPONENTS distributor.
How do I troubleshoot issues or seek technical support for part SSW115S?
You can download the SSW115S datasheet or visit the C&K COMPONENTS website for support.
Who is the manufacturer of SSW115S?
C&K COMPONENTS
