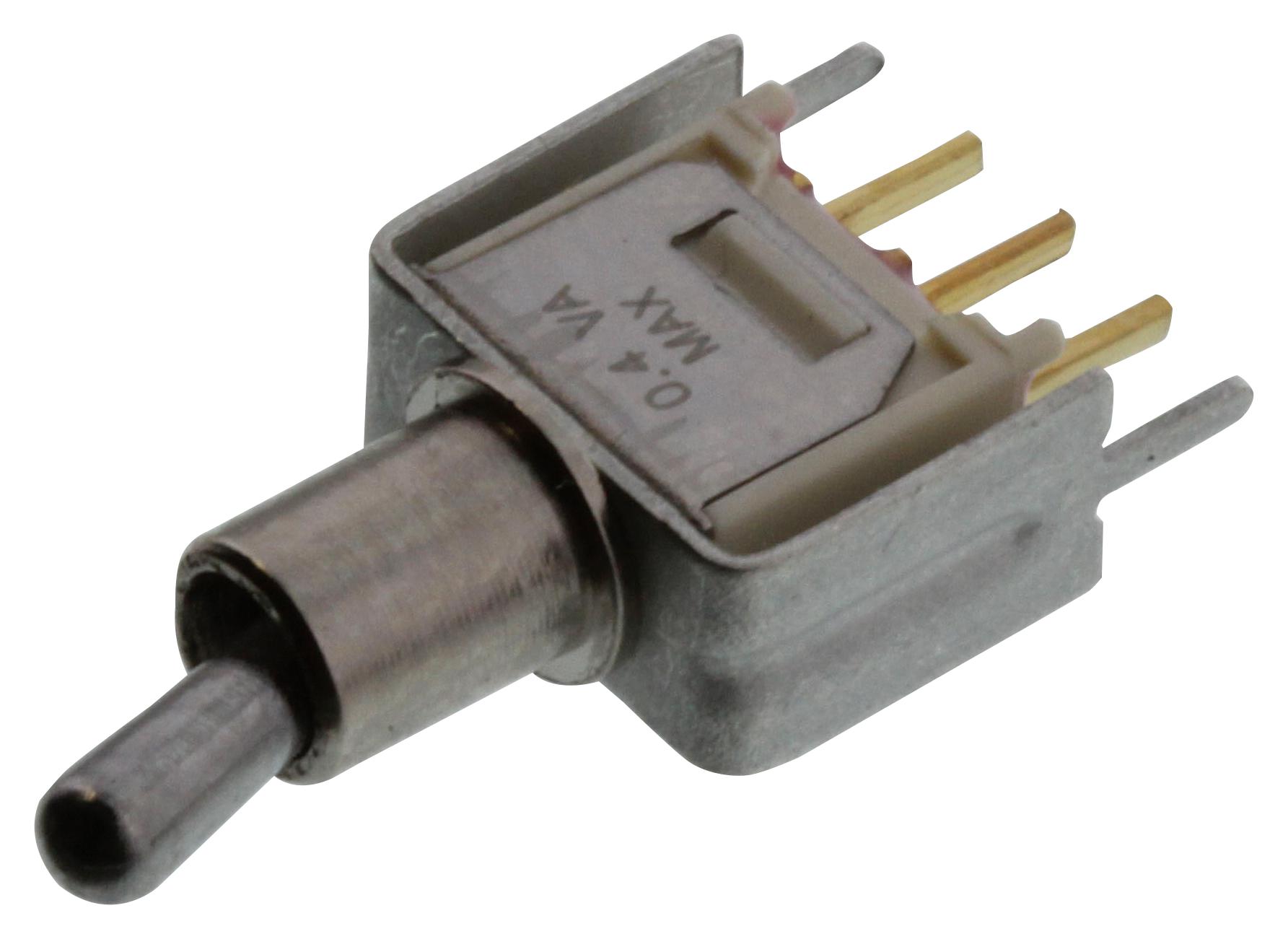

C&K COMPONENTS T101MH9V3BE Subminiature Toggle Switch
The T Series subminiature toggle switch offers compact design, making it ideal for hand-held telecommunications, instrumentation, and medical equipment. It features single and double pole options, with robust construction including glass-filled nylon or diallyl phthalate cases, brass actuators, nickel-plated bushings, and stainless steel housings. Contact ratings vary by model, with electrical life up to 60,000 make-and-break cycles for TX01 models. Operating temperatures range from -30°C to 85°C, and RoHS compliance ensures environmentally friendly manufacturing. Equipped with epoxy seals and precise terminal configurations, this switch provides reliable performance in critical applications.
C&K COMPONENTS T101MH9V3BE Subminiature Toggle Switch Specifications:
- Contact Rating: B contact material: 0.4 VA max. @ 20 V AC or DC max. Q contact material (TX01 models): 3 AMPS @ 120 V AC or 28 V DC. All other models: 2 AMPS @ 120 V AC or 28 V DC.
- Electrical Life: TX01 models: 60,000 cycles; all other models: 30,000 cycles.
- Contact Resistance: Below 20 mΩ initially @ 2-4 V DC, 100 mA.
- Insulation Resistance: 10^9 Ω min.
- Dielectric Strength: 1000 V rms min. @ sea level.
- Operating Temperature: -30°C to 85°C.
- Materials: Case - Glass-filled nylon 6/6 or diallyl phthalate, Flame retardant. Actuator - Brass, chrome plated. Bushing - Brass, nickel plated. Housing - Stainless steel. End contacts - Copper alloy, gold or silver plated. Seal - Epoxy.
- Hardware: Nut & locking ring - Brass, nickel plated; Lockwasher - Steel, nickel plated.
- Dimensions: Standard actuator height approximately 0.370 inches, diameters vary by model, with threaded or unthreaded configurations for panel mounting.
- Sealing: Epoxy terminal seal, IP67 degree of protection compatibility with all bottom-wash PCB cleaning methods.
Buy the Buy CK Switches T Series Subminiature Toggle Switch Part Number T101MH9V3BE Online
Purchase the CK Switches T Series subminiature toggle switch online today. Engineered for durability in critical applications like medical and telecom equipment, this versatile switch features high contact ratings, RoHS compliance, epoxy sealing for IP67 protection, and robust materials. Its compact size accommodates tight spaces, providing reliable performance through up to 60,000 cycles for TX01 models. Experience fast, safe ordering and get the dependable toggle switch your projects demand, delivered right to your door for efficient assembly and maintenance.
Order your CK Switches T101MH9V3BE series compact toggle switch today and ensure reliable operation in medical, instrumentation, and telecom applications.
