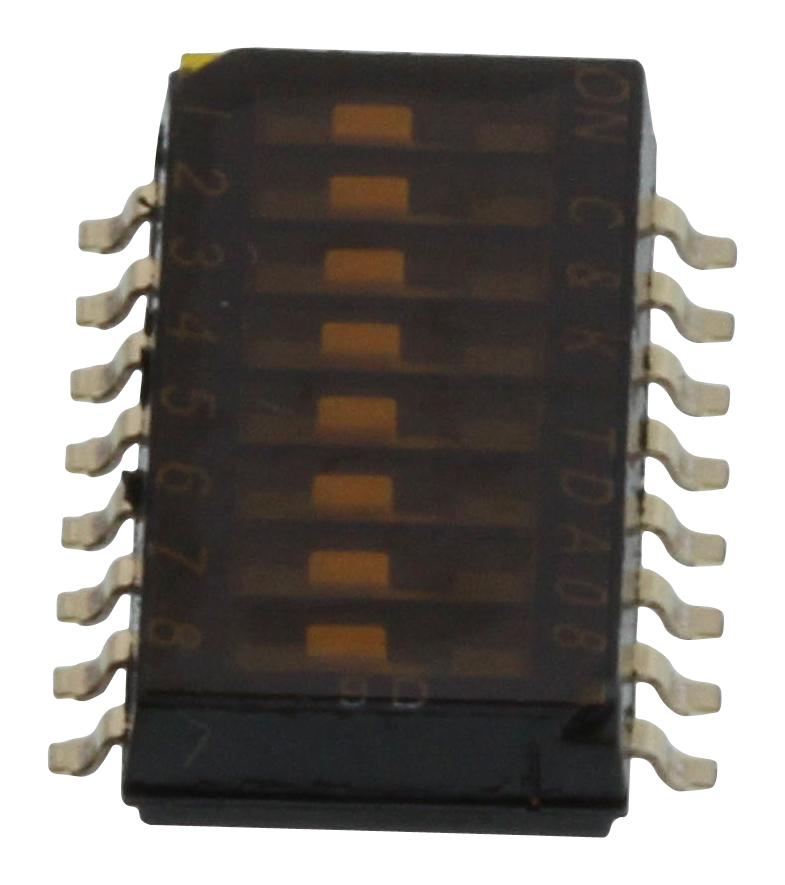

C&K COMPONENTS TDA08H0SB1R Surface Mount DIP Switch
The TDA Series ultra-miniature surface mount half-pitch DIP switch features a bifurcated contact design for enhanced electrical reliability and process sealing for surface mount soldering and washable processing. Suitable for handheld electronic devices, portable computers, instrumentation, and control applications, it offers SPST configurations with 2, 4, 6, 8, or 10 positions. With a contact rating of 24 VDC at 25 mA, a life cycle of 1,000 cycles, and operating temperatures from -40°C to 85°C, it is made with durable materials like PPS and copper alloy, ensuring performance and longevity.
C&K COMPONENTS TDA08H0SB1R Surface Mount DIP Switch Specifications:
- Switch Function: SPST — 2, 4, 6, 8 & 10 positions
- Contact Rating: 24 VDC, 25 mA (switching); 50 VDC, 100 mA (steady state)
- Mechanical & Electrical Life: 1,000 cycles
- Contact Resistance: 100 milliohms max
- Insulation Resistance: 100 megohms @100 V DC min
- Dielectric Strength: 300 V AC min
- Storage Temperature: -40°C to 85°C
- Operating Temperature: -40°C to 85°C
- Operating Force: 4.9 N max
- Solderability: MIL-STD-202F method 208D or EIA RS-186E, 1 hour steam aging
- Materials: Case & Cover PPS (UL94V-0), Actuator LCP (UL94V-0), Contacts Copper alloy with gold plating
- Terminals Copper alloy with gold flash over nickel plate, insert molded
- Tape Seal Polyimide
Buy the CK Components TDA08H0SB1 – Reliable Micro Switches for Industrial Applications
Purchase the TDA Series ultra-miniature surface mount DIP switch online today for reliable operation in electronic and portable device applications. Designed with sealed construction, multiple switch positions, and high durability, this switch ensures long-lasting performance. Ideal for instrumentation, control systems, handheld electronics, and portable computers. With a contact rating of 24 VDC at 25 mA, a life of 1,000 cycles, and operation within -40°C to 85°C, it offers excellent value and versatility for your projects. Order now for fast delivery and seamless integration.
Buy CK Components TDA08H0SB1 now and experience unmatched reliability and performance in miniature surface mount switching solutions.
Frequently Asked Questions
Where can I buy C&K COMPONENTS TDA08H0SB1R?
You can click on the BUY or RFQ button to purchase TDA08H0SB1R from an authorized C&K COMPONENTS distributor.
How do I troubleshoot issues or seek technical support for part TDA08H0SB1R?
You can download the TDA08H0SB1R datasheet or visit the C&K COMPONENTS website for support.
Who is the manufacturer of TDA08H0SB1R?
C&K COMPONENTS
