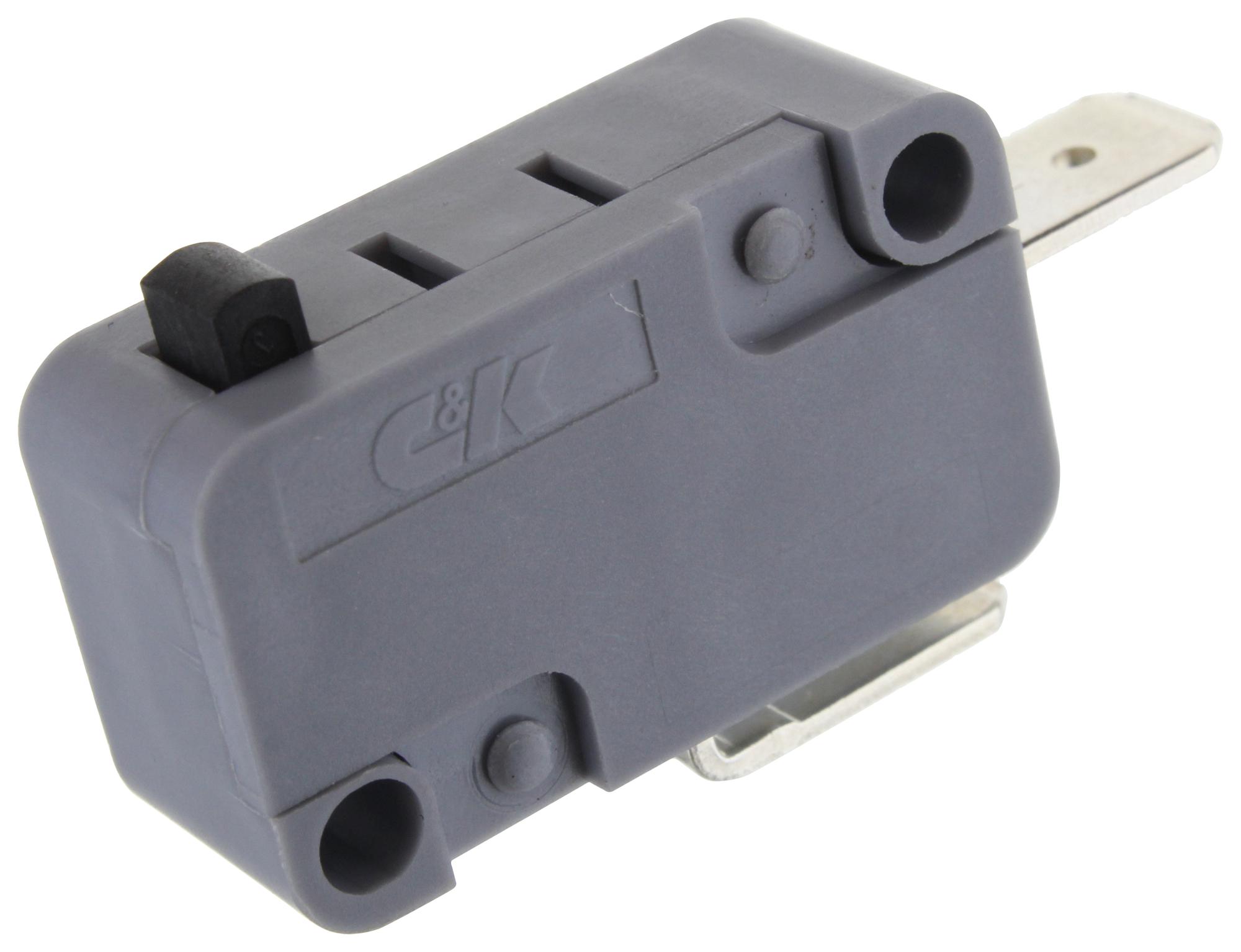

C&K COMPONENTS TF316CFT104AY Miniature Snap-acting Switch
The TF3 Series miniature snap-acting switches feature full disconnection with a gap greater than 3 mm, ideal for heavy-duty power tools and motor controls. Rated up to 25 amps at 125/250 V AC, they offer various actuator styles including pin plungers, levers, and simulated rollers. Constructed with durable PBT housing, these switches withstand operating temperatures from -40°C to 125°C and feature high mechanical life of 500,000 cycles. Certified for UL61058-1 compliance, they are suitable for quick connect terminations and extreme industrial environments, ensuring reliable performance and safety.
C&K COMPONENTS TF316CFT104AY Miniature Snap-acting Switch Specifications:
- CONTACT RATING: From 10A to 25A @ 125/250 V AC
- ELECTRICAL LIFE: 10,000 cycles
- MECHANICAL LIFE: 500,000 cycles
- INSULATION RESISTANCE: 100 M ohm min.
- DIELECTRIC STRENGTH: 1,500 Vrms min. @ sea level
- OPERATING TEMPERATURE: -40°C to 125°C
- OPERATING FORCE: Refer to chart for lever style forces
- MOUNTING: Torque screws 2-5 in/Ibs.
- SWITCH HOUSING: PBT
- COVER: PBT
- ACTUATOR BUTTON: Nylon
- SPRING: SWP
- PIVOT: Copper
- MOVABLE CONTACTS: Silver Alloy
- MOVABLE BLADE: Copper Alloy
- STATIONARY CONTACTS: Silver Alloy
- TERMINALS: Copper
Buy the Alekto TF3 – Reliable Snap-acting Switches for Industrial Applications
Purchase the Alekto TF3 miniature snap-acting switches online today and ensure reliable, high-performance operation in heavy-duty industrial applications. With ratings up to 25A at 125/250 V AC, durable PBT housing, and a variety of actuator options like pin plungers and levers, these switches are designed for longevity. They support quick connect terminations, withstand extreme temperatures up to 125°C, and feature a mechanical lifespan of 500,000 cycles. Secure your supply of high-quality industrial switches now for enhanced operational safety and efficiency.
Get Alekto TF3 switches today—built for precision and long-lasting durability in demanding industrial environments.
Frequently Asked Questions
Where can I buy C&K COMPONENTS TF316CFT104AY?
You can click on the BUY or RFQ button to purchase TF316CFT104AY from an authorized C&K COMPONENTS distributor.
How do I troubleshoot issues or seek technical support for part TF316CFT104AY?
You can download the TF316CFT104AY datasheet or visit the C&K COMPONENTS website for support.
Who is the manufacturer of TF316CFT104AY?
C&K COMPONENTS
