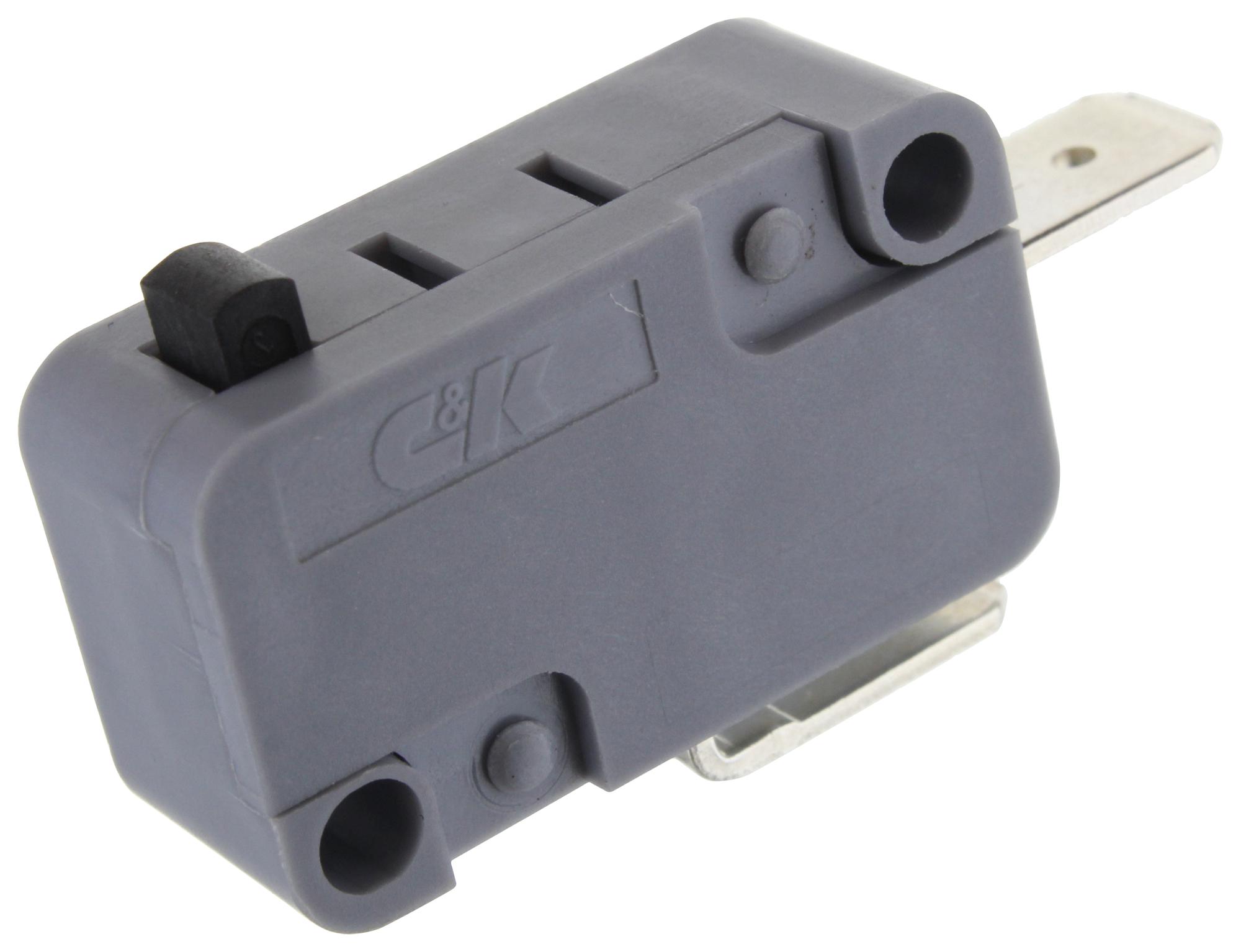

C&K COMPONENTS TF316ECT244AY Miniature Snap-acting Switch
The TF3 Series miniature snap-acting switches are designed for high reliability in industrial and power tool applications. Featuring a full disconnection gap exceeding 3 mm, they support operating forces from 100 to 190 grams depending on actuator style. With ratings up to 25 amps at 125/250V AC, they ensure safe, efficient operation in heavy-duty environments. Constructed with durable materials like PBT housing and silver alloy contacts, these switches operate across temperatures from -40°C to 125°C, making them ideal for motor controls, HVAC, and quick connect systems. Their robust design ensures a high electrical life of 10,000 cycles and a mechanical life of 500,000 cycles.
C&K COMPONENTS TF316ECT244AY Miniature Snap-acting Switch Specifications:
- Contact Rating: 10A to 25A @ 125/250 V AC
- Electrical Life: 10,000 cycles
- Mechanical Life: 500,000 cycles
- Insulation Resistance: 100 M ohm min.
- Dielectric Strength: 1,500 Vrms min. @ sea level
- Operating Temperature: -40°C to 125°C
- Operating Force: 100 to 190 grams depending on actuator
- Mounting: Torque screws 2-5 in/Ibs.
- Switch Housing: PBT
- Cover: PBT
- Actuator Button: Nylon
- Spring: SWP
- Pivot: Copper
- Movable Contacts: Silver Alloy
- Movable Blade: Copper Alloy
- Stationary Contacts: Silver Alloy
- Terminals: Copper
Buy the IndustrialSwitches TF3 – Reliable Snap-acting Switches for Industrial Applications
Discover the durable TF3 Series miniature snap-acting switches designed for industrial use. With full disconnection gaps exceeding 3 mm, these switches support up to 25A at 125/250V AC, providing high reliability in motor controls, HVAC, and power tools. Featuring robust materials like PBT housing and silver alloy contacts, they endure extreme temperatures from -40°C to 125°C. With long electrical and mechanical life cycles, order online now to upgrade your systems with dependable, high-performance switches tailored for demanding environments.
Order your IndustrialSwitches TF3 Series miniature snap-acting switch today and ensure dependable performance in heavy-duty applications and motor controls.
Frequently Asked Questions
Where can I buy C&K COMPONENTS TF316ECT244AY?
You can click on the BUY or RFQ button to purchase TF316ECT244AY from an authorized C&K COMPONENTS distributor.
How do I troubleshoot issues or seek technical support for part TF316ECT244AY?
You can download the TF316ECT244AY datasheet or visit the C&K COMPONENTS website for support.
Who is the manufacturer of TF316ECT244AY?
C&K COMPONENTS
