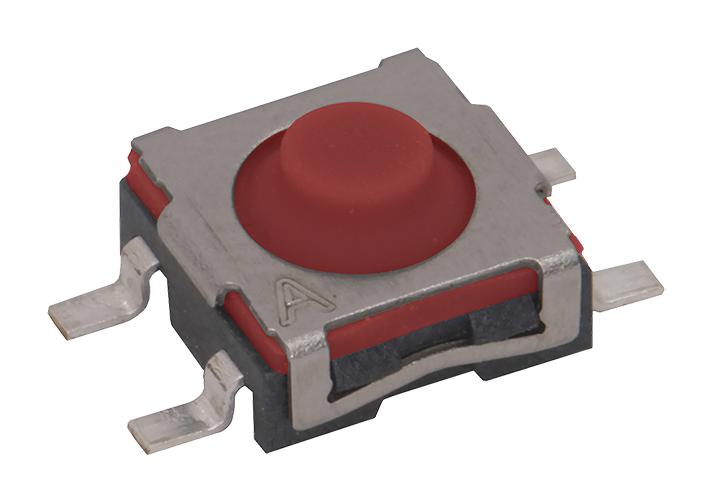

C&K COMPONENTS TLSMDT3C020GLFS Tactile Switch
The compact top-mounted SMT tactile switch features dimensions of 6.0 x 6.1 mm with a height of 3.45 mm and an IP54 splash-resistant rating. It provides momentary operation with SPDT contacts, including normally closed contacts, suitable for various applications such as elevator buttons, alarm systems, robotic vacuums, door handles, and mowers. Designed for reliability, it supports operating temperatures from -40°C to 90°C, with a lifespan of approximately 3 million cycles, a travel distance of 0.3 mm ± 0.2 mm, and a voltage range of 1V to 16V DC.
C&K COMPONENTS TLSMDT3C020GLFS Tactile Switch Specifications:
- Dimensions: 6.0 x 6.1 mm; Height: 3.45 mm
- IP Rating: IP54 splash-resistant
- Contact Arrangement: SPDT, NC
- Voltage Range: DC 1V to 16V
- Current: 10pA to 50mA
- Operating Temperature: -40°C to 90°C
- Operating Life: 3,000,000 cycles
- Travel Distance: 0.3 mm ± 0.2 mm
- Mechanical Soldering: Infrared Reflow Soldering
- Contact Resistance: Max 200mΩ
- Insulation Resistance: Min 100 MΩ
- Dielectric Voltage: AC 250V
- Terminals: SMT termination
Buy the CK Switch TLSMDT3C020GLFS – Reliable Tactile Switch for Industrial Applications
Order the CK Switch TLSMDT3C020GLFS online today—this high-quality tactile switch offers durable performance, splash resistance, and long operating life. Its compact 6.0 x 6.1 mm size and 3 million cycle lifespan make it ideal for elevators, alarms, robotic vacuums, door handles, and mower controls. With a travel distance of just 0.3 mm, support for DC 1V to 16V, and an IP54 rating, this switch ensures reliable operation in challenging conditions. Purchase now for quality and dependability.
Get CK Switch TLSMDT3C020GLFS today—built for precision, long-lasting durability, and robust performance in industrial environments.
Frequently Asked Questions
Where can I buy C&K COMPONENTS TLSMDT3C020GLFS?
You can click on the BUY or RFQ button to purchase TLSMDT3C020GLFS from an authorized C&K COMPONENTS distributor.
How do I troubleshoot issues or seek technical support for part TLSMDT3C020GLFS?
You can download the TLSMDT3C020GLFS datasheet or visit the C&K COMPONENTS website for support.
Who is the manufacturer of TLSMDT3C020GLFS?
C&K COMPONENTS
