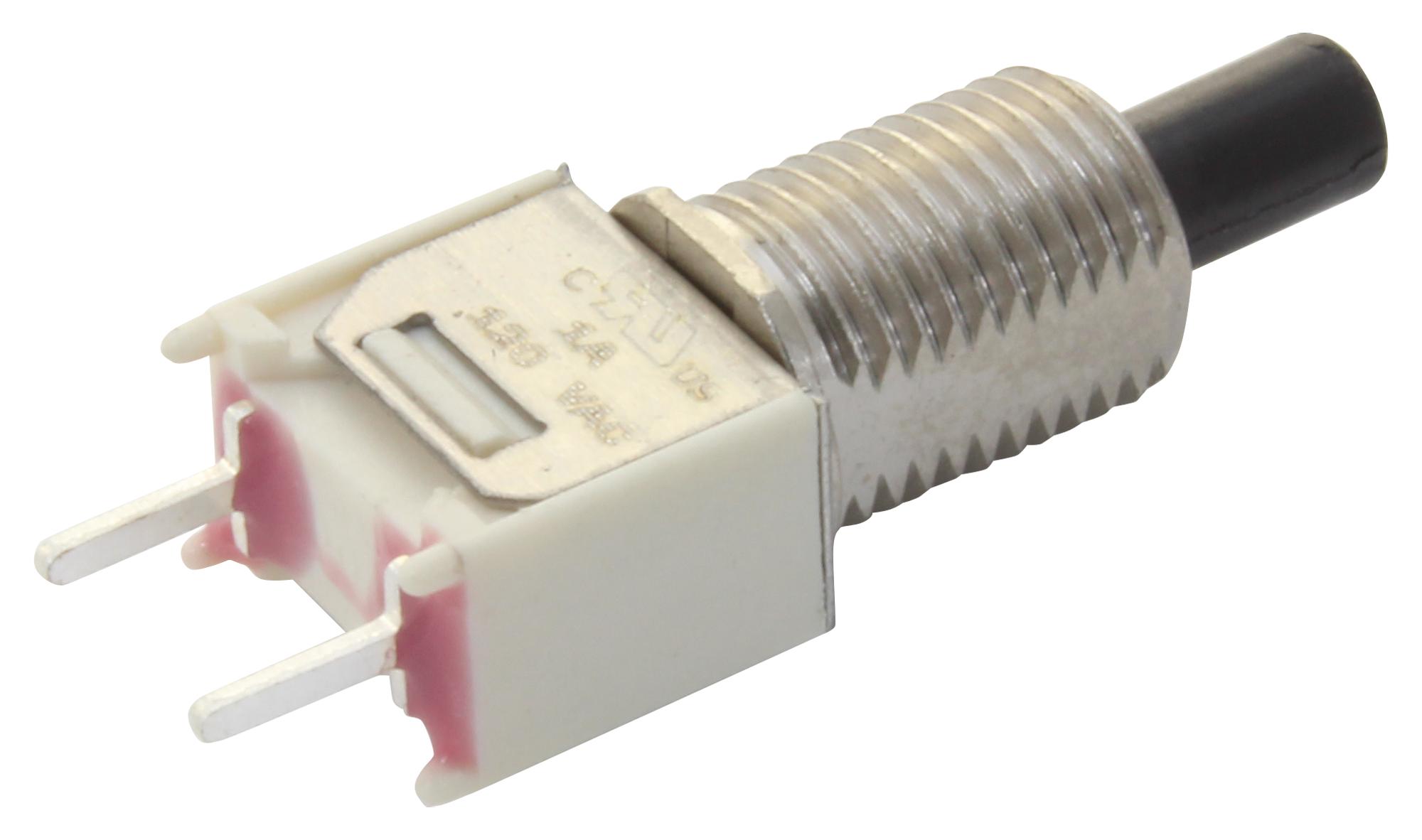

C&K COMPONENTS TP11LTCQE Tiny Pushbutton Switch
The Tiny Pushbutton Switches of the TP Series are compact, subminiature switches ideal for diverse electronic applications. They feature epoxy terminal seals compatible with bottom wash cleaning, RoHS compliance, and multiple mounting options including vertical, right angle, and snap-in frames. With rated electrical life up to 60,000 cycles and contact ratings up to 1 Amp at 120 V AC, these switches are suitable for telecommunications, instrumentation, and computer peripherals. Constructed with durable nylon and brass components, they offer reliable performance in high-reliability environments, ensuring precise switching with long-lasting durability.
C&K COMPONENTS TP11LTCQE Tiny Pushbutton Switch Specifications:
- Contact Rating: 0.4 VA max. @ 20 V AC/DC; 1 AMP @ 120 V AC/DC
- Electrical Life: 60,000 cycles (TP11, TP21); 30,000 cycles (TP12)
- Contact Resistance: Below 20 mΩ initial @ 2-4 V DC, 100 mA
- Insulation Resistance: 10^9 Ω 15 min
- Dielectric Strength: 1000 Vrms min.
- Operating Temperature: -30°C to 85°C
- Materials: Case - Glass-filled nylon, Diallyl phthalate; Plunger - Thermoplastic polyester; Bushing - Brass, nickel plated; Housing - Stainless steel
- Terminals - Copper alloy with gold or silver plating; Epoxy terminal seal
- Dimensions and mountings vary, with PC thru-hole, snap-in, vertical, and right angle options
- RoHS compliant models available
Buy the Buy CK Switches Tiny Pushbutton Switches Part Number TP11LTCQE Online
Order CK Switches Tiny Pushbutton Switches TP11LTCQE online today to experience reliable performance in compact sizes suitable for telecommunications, controls, and peripherals. These switches feature epoxy terminal seals, RoHS compliance, and various mounting options including vertical, right angle, and snap-in frames. Designed with durable nylon and brass components, they ensure precise switching cycles up to 60,000, making them ideal for high-reliability environments. Buy online now for quick delivery and trusted quality in your electronic projects.
Get CK Switches Tiny Pushbutton Switches TP11LTCQE today—built for precision and long-lasting durability in compact electronic applications.
Frequently Asked Questions
Where can I buy C&K COMPONENTS TP11LTCQE?
You can click on the BUY or RFQ button to purchase TP11LTCQE from an authorized C&K COMPONENTS distributor.
How do I troubleshoot issues or seek technical support for part TP11LTCQE?
You can download the TP11LTCQE datasheet or visit the C&K COMPONENTS website for support.
Who is the manufacturer of TP11LTCQE?
C&K COMPONENTS
