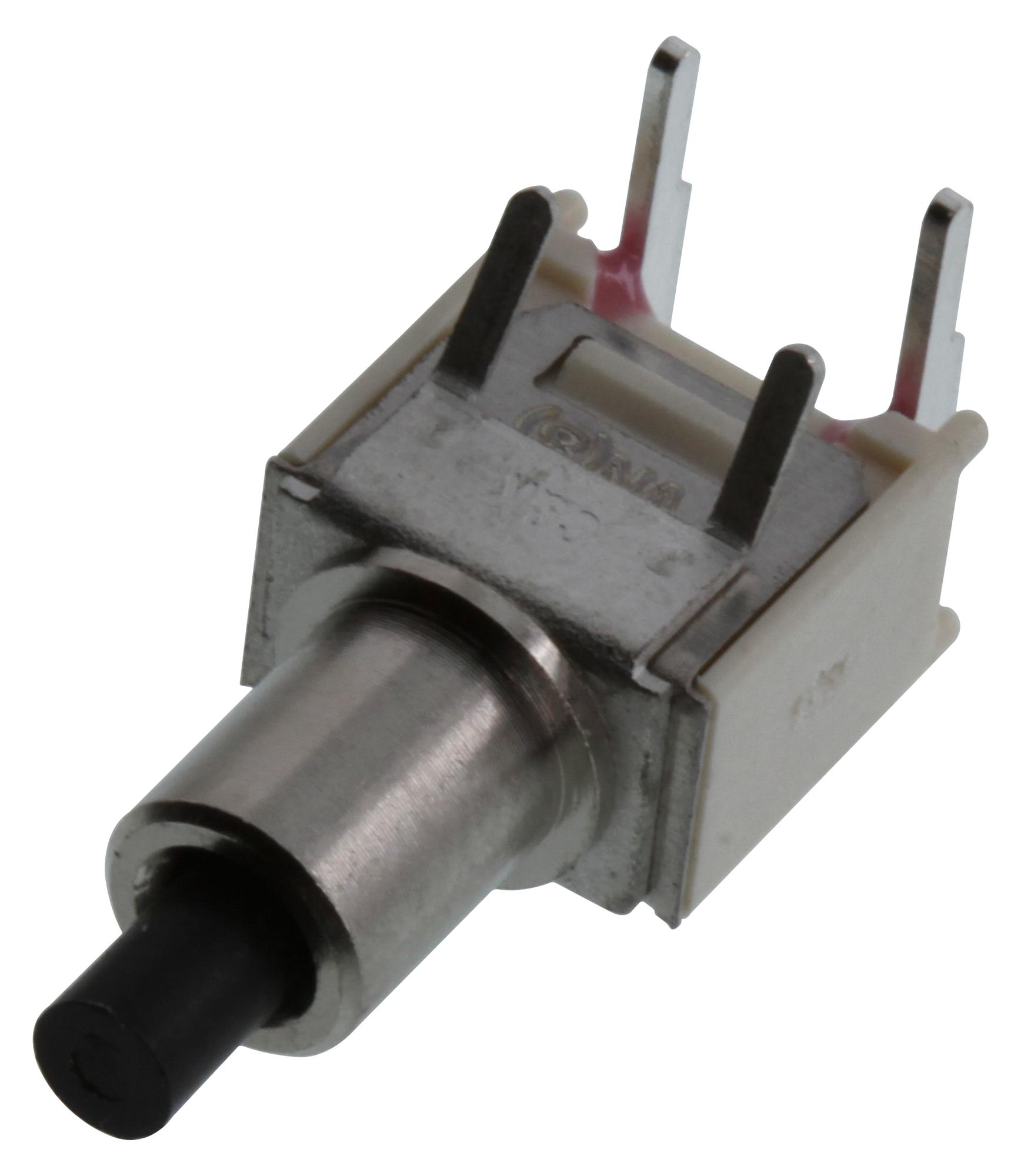

C&K COMPONENTS TP11SH8AQE Sealed Pushbutton Switch
The TP11SH8AQE is a tiny, sealed, momentary pushbutton switch with a compact design, suitable for instrumentation, telecommunications, and networking equipment. It features a sealed construction with epoxy sealing, ensuring durability against environmental factors. The switch supports multiple mounting options, including PC thru-hole, with various plunger and actuator styles. It has a contact rating of 0.4 VA at 30 VDC, a lifespan of 10,000 cycles, and operates within a temperature range of -20°C to 70°C. Ideal for space-constrained applications requiring reliable, sealed operation.
C&K COMPONENTS TP11SH8AQE Sealed Pushbutton Switch Specifications:
- Contact Rating: 0.4 VA at 30 VDC
- Initial Contact Resistance: 30 m ohms max
- Insulation Resistance: 100 M ohms min
- Dielectric Strength: 500 V AC (50-60 Hz)
- Operating Life: 10,000 cycles
- Operating Force: 300 + 100 gf (2.94 + 0.98 N)
- Total Travel: 3.5 + 0.3 mm
- Travel to Contact: 2.5 + 0.3 mm
- Operating Temperature: -20°C to 70°C
- Materials: Housing - SPCC, Knob - POM (UL 94HB), Contact - Silver plated, Spring - Steel, Terminals - Silver plated
- Mounting options include PC thru-hole, snap-in, right angle, vertical, with epoxy seal
- Environment: IP67 sealed, suitable for harsh environments
- RoHS compliant, low current switching applications, designed for space-constrained devices
Buy the CK Series TP11 Sealed Pushbutton Switch: TP11SH8AQE
Purchase the CK Series TP11 Sealed Pushbutton Switch online today for your industrial and electronic needs. Designed for harsh environments, it offers a compact, epoxy-sealed construction with a lifespan of 10,000 cycles. Its versatile mounting options include PC thru-hole, snap-in, and right angle configurations, making it ideal for space-constrained applications. With a contact rating of 0.4 VA at 30 VDC and operation from -20°C to 70°C, this switch provides reliable performance for control panels, instrumentation, and networking equipment. Enhance your project’s durability and efficiency by ordering online now.
Order your CK Series TP11 sealed pushbutton switch today and ensure reliable, sealed operation in your industrial, electronic, or networking projects.
