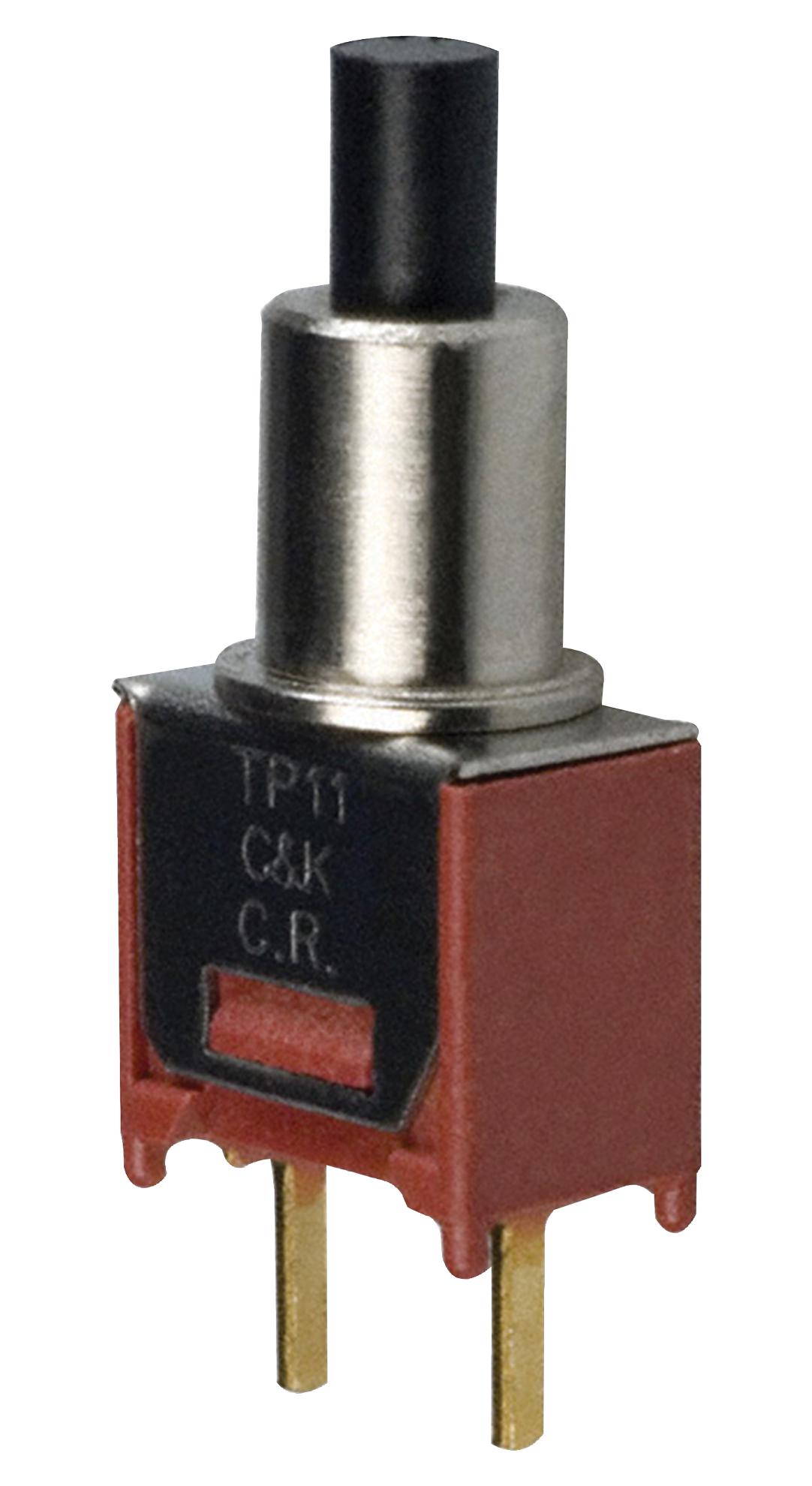

C&K COMPONENTS TP11SH8CQE Miniature Pushbutton Switch
The TP11SH8CQE is a miniature pushbutton switch designed for reliable switching applications in telecommunications, networking, and computer peripherals. It features a compact size, vertical and right-angle terminations, and epoxy terminal seals compatible with bottom wash cleaning. Made with durable nylon and brass components, it offers a contact rating of 1 AMP @ 120 V AC/DC and an electrical life of 60,000 cycles. It is RoHS compliant, suitable for panel mounting, and available with various actuators and terminations. Ideal for control panels requiring space-saving and reliable switching solutions.
C&K COMPONENTS TP11SH8CQE Miniature Pushbutton Switch Specifications:
- Contact Rating: 1 AMP @ 120 V AC/DC
- Electrical Life: 60,000 cycles
- Contact Resistance: Below 20 mΩ initial
- Insulation Resistance: 10^9 Ω min.
- Dielectric Strength: 1000 Vrms
- Operating Temperature: -30°C to 85°C
- Materials: Nylon case, brass bushings, copper alloy contacts with gold plate
- Termination: Epoxy-sealed terminals, multiple actuation options
- Mounting Style: Panel mount with snap-in compatibility
- RoHS compliant models available
- Dimensions: Approximate plunger height 0.155 inches, bushing height varies with model
- Finish: Nylon gloss, nickel-plated brass bushings
Buy the CK Switches Series TP Tiny Pushbutton Switch: TP11SH8CQE
Elevate your electronic and control projects by purchasing the CK Switches TP11SH8CQE miniature pushbutton switch online today. Crafted with durable nylon and brass, this switch provides 1 AMP @ 120 V AC/DC switching capacity and is rated for 60,000 cycles. Its epoxy terminal seal ensures compatibility with bottom wash cleaning, making it ideal for telecommunications, networking, and computer peripherals. Available with various actuators and mounting options, it guarantees reliable operation in tight spaces. Get yours now and ensure dependable, space-efficient switching in your assembly.
Order your CK Switches Series TP11SH8CQE miniature pushbutton switch today and enhance your control panels with space-saving, reliable switching performance.
