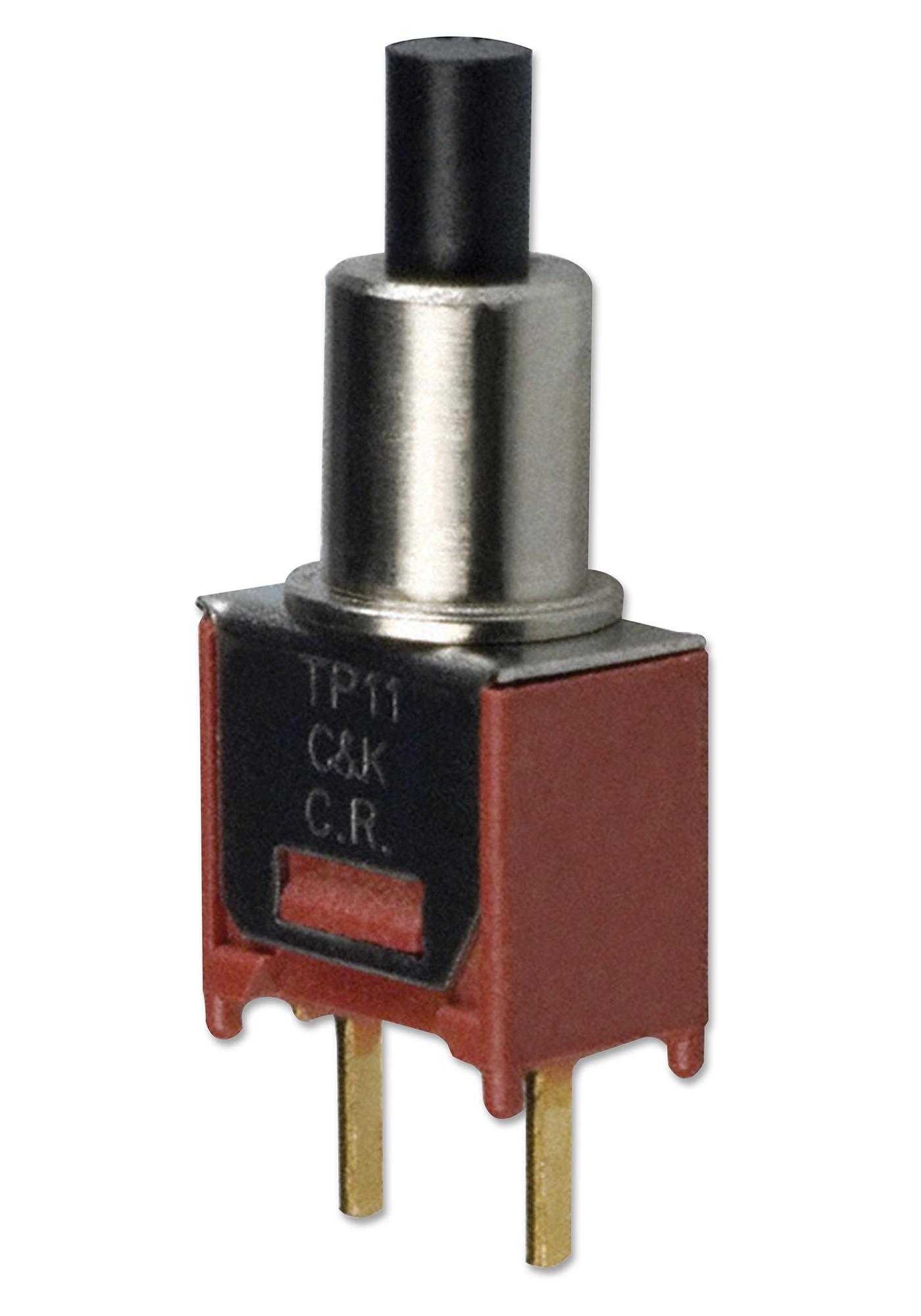

C&K COMPONENTS TP11SH9CBE Tiny Pushbutton Switch
The TP Series Tiny Pushbutton Switches are compact, high-quality switches designed for applications such as telecommunications, networking equipment, and computer peripherals. They feature a subminiature form factor with vertical and right-angle terminations, epoxy terminal seals, and RoHS compliance. Made with durable materials including nylon, brass, stainless steel, and copper alloy contacts, these switches offer reliable electrical performance with ratings up to 1 AMP at 120 V AC or 28 V DC, and a mechanical lifespan of up to 60,000 cycles for certain models. Their versatile mounting options include panel, snap-in, and PC through-hole configurations suitable for various industrial and panel-mount environments.
C&K COMPONENTS TP11SH9CBE Tiny Pushbutton Switch Specifications:
- CONTACT RATING: 1 AMP @ 120 V AC or 28 V DC, 0.4 VA max. @ 20 V AC/DC for gold and silver contacts.
- ELECTRICAL LIFE: Up to 60,000 make-and-break cycles depending on model.
- CONTACT RESISTANCE: Less than 20 mΩ initial, measured at 2-4 V DC, 100 mA.
- INSULATION RESISTANCE: 10^9 Ω for 15 minutes.
- DIELECTRIC STRENGTH: Minimum 1000 Vrms at sea level.
- OPERATING TEMPERATURE: -30°C to 85°C.
- MATERIALS: Cases of glass-filled nylon or Diallyl Phthalate, brass bushings, stainless steel housing, copper alloy contacts with gold or silver plating.
- Mounting options include panel mounts, snap-in frames, vertical and right-angle PCB through-holes, with optional LEDs.
- Electrical and mechanical specifications are suitable for low-level, dry circuit applications, and are RoHS compliant.
Buy the CK Switches Series Tiny Pushbutton: TP11SH9CBE
Order CK Switches TP11SH9CBE tiny pushbutton switches online today and benefit from reliable, long-lasting performance in telecommunications, networking, and computer peripherals. Designed with epoxy seals and RoHS compliance, these compact switches feature multiple termination options including PCB through-hole, snap-in frames, panel mounting, and various actuator styles. They provide excellent electrical ratings up to 1 AMP at 120 V AC or 28 V DC, with a lifespan of up to 60,000 cycles. Perfect for low-level dry circuit applications, they ensure durability and precision in demanding environments.
Get CK Switches TP11SH9CBE today—built for precision, durability, and versatile mounting options for industrial and panel applications.
Frequently Asked Questions
Where can I buy C&K COMPONENTS TP11SH9CBE?
You can click on the BUY or RFQ button to purchase TP11SH9CBE from an authorized C&K COMPONENTS distributor.
How do I troubleshoot issues or seek technical support for part TP11SH9CBE?
You can download the TP11SH9CBE datasheet or visit the C&K COMPONENTS website for support.
Who is the manufacturer of TP11SH9CBE?
C&K COMPONENTS
