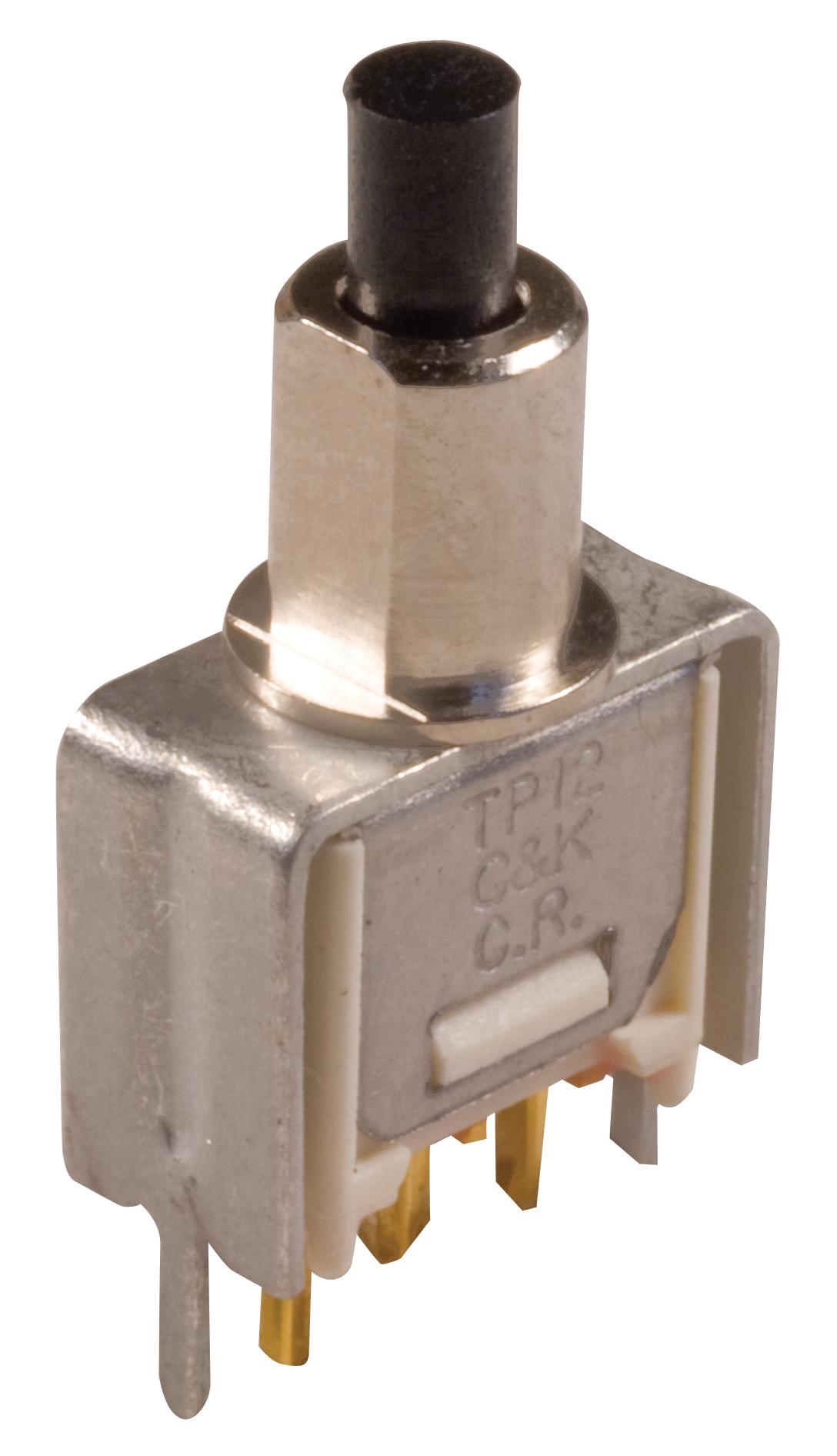

C&K COMPONENTS TP12SH8CBE Tiny Pushbutton Switch
Tiny pushbutton switch designed for industrial, telecommunication, and computer applications, featuring subminiature size, multiple termination options, epoxy seal, and RoHS compliance. Typical models support switching capacities up to 1 AMP and include vertical and right-angle terminations with optional snap-in mounting. Constructed with durable nylon, brass, stainless steel, and copper alloy contacts, these switches offer high electrical life, low contact resistance, and insulation resistance suitable for harsh environments. Many models are compatible with PCB washing processes, with optional capping and framing to suit panel mounting needs.
C&K COMPONENTS TP12SH8CBE Tiny Pushbutton Switch Specifications:
- CONTACT RATING: 0.4 VA max. @ 20 V AC/DC (B contact), 1 AMP @ 120 V AC/DC (Q contact)
- ELECTRICAL LIFE: 60,000 cycles (TP11, TP21), 30,000 cycles (TP12)
- CONTACT RESISTANCE: Below 20 mΩ initial @ 2-4 V DC, 100 mA
- INSULATION RESISTANCE: 10^9 Ω min.
- DIELECTRIC STRENGTH: 1000 Vrms min. @ sea level
- OPERATING TEMPERATURE: -30°C to 85°C
- MATERIAL: Case - Glass-filled nylon or Diallyl Phthalate; Plunger - Thermoplastic polyester; Bushings - Brass; Housing - Stainless steel
- CONTACT MATERIAL: Copper alloy with gold or silver plating, coin silver options available
- TERMINALS: Copper alloy with matte-tin or gold over nickel plating
- DIMENSIONS: Various, plunger diameters 0.100” - 0.120”, heights from 0.130” to 0.215”, panel mounting compatible with different thicknesses
- Sealed epoxy terminal ensures washability and low environmental impact
- Construction designed for reliable operation in harsh industrial environments
Buy the CK Switches TP12SH8CBE – Reliable Momentary Pushbutton Switch for Industrial Applications
Purchase your CK Switches TP12SH8CBE tiny pushbutton switch online today and benefit from fast delivery, OEM-certified quality, and competitive pricing. These high-reliability switches are perfect for demanding telecommunication, network equipment, and computer applications. Designed with epoxy sealing and RoHS compliance, they provide long-lasting performance with high electrical life, low contact resistance, and versatile mounting options suitable for panel, PCB, or snap-in assembly. Make your project more durable and efficient by ordering online now!
Order your CK Switches TP12SH8CBE tiny pushbutton switch today and ensure dependable control for your industrial, telecommunications, or networking projects.
Frequently Asked Questions
Where can I buy C&K COMPONENTS TP12SH8CBE?
You can click on the BUY or RFQ button to purchase TP12SH8CBE from an authorized C&K COMPONENTS distributor.
How do I troubleshoot issues or seek technical support for part TP12SH8CBE?
You can download the TP12SH8CBE datasheet or visit the C&K COMPONENTS website for support.
Who is the manufacturer of TP12SH8CBE?
C&K COMPONENTS
