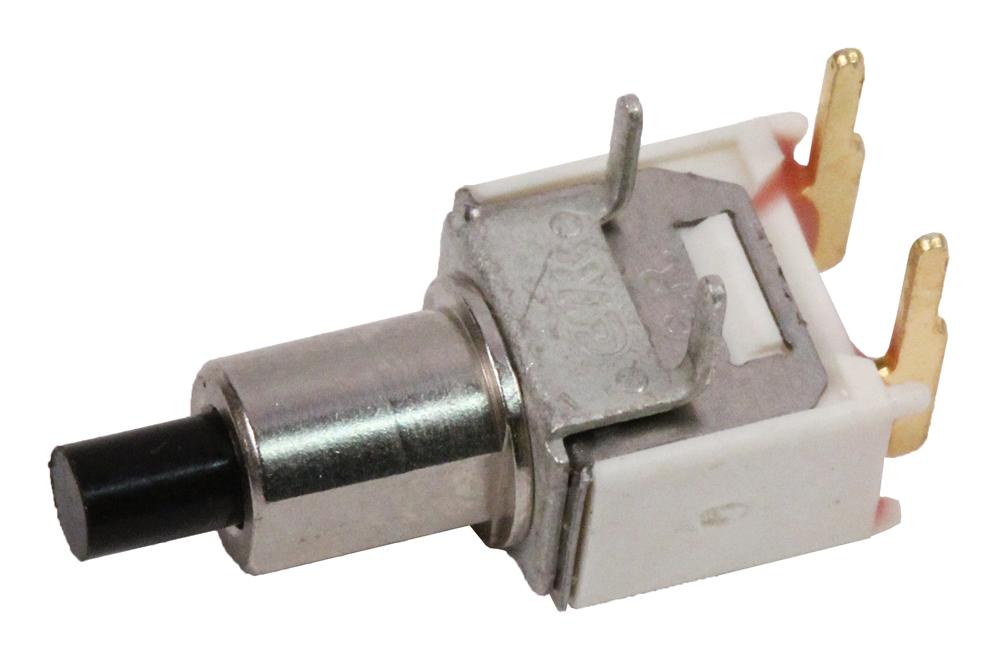

C&K COMPONENTS TP12SH9ABE Tiny Pushbutton Switch
Tiny Pushbutton Switches are compact, reliable, and versatile, featuring various actuator and mounting options suitable for telecommunications, networking, and computer peripherals. Made with durable nylon and brass components, these switches support up to 1 AMP switching capacity, with RoHS compliance for environmental standards. Designed for panel or PCB mounting, with epoxy terminal seals, they offer long electrical life—up to 60,000 cycles—and operate in temperatures from -30°C to 85°C. Ideal for low-level, dry circuit applications and panel integration requiring small footprint, high durability, and precise actuation.
C&K COMPONENTS TP12SH9ABE Tiny Pushbutton Switch Specifications:
- CONTACT RATING: 1 AMP @ 120 V AC/DC, 0.4 VA max. @ 20 V AC/DC (silver/gold plated contacts)
- ELECTRICAL LIFE: Up to 60,000 cycles for TP11, TP21 models; 30,000 cycles for TP12 models
- CONTACT RESISTANCE: Below 20 mΩ initially
- INSULATION RESISTANCE: 10^9 Ω for 15 minutes
- DIELECTRIC STRENGTH: 1000 Vrms minimum @ sea level
- OPERATING TEMPERATURE: -30°C to 85°C
- MATERIAL: Glass filled nylon case, thermoplastic polyester plunger, brass, stainless steel housings
- DIMENSIONS: Plunger heights from .155" to .215", round and threaded bushings, various actuator sizes
- TERMINAL SEAL: Epoxy
- ROHS: Compliant with models with P, R, Q, B, G contact materials
Buy the CK Switches Series Tiny Pushbutton Switches: TP12SH9ABE
Order CK Switches tiny pushbutton switches online today to benefit from high durability, epoxy terminal seals, and versatile mounting options. Suitable for telecom, networking, and computer peripherals, these switches support up to 1 AMP capacity, operate efficiently in wide temperature ranges, and comply with RoHS standards. Easy to install with panel or PCB mounting, they provide long electrical life—up to 60,000 cycles—making them ideal for low-level, dry circuit applications in various environments. Trusted quality and fast shipping available online.
Buy CK Switches TP12SH9ABE now and experience unmatched reliability, durability with epoxy seals and versatile mounting options.
Frequently Asked Questions
Where can I buy C&K COMPONENTS TP12SH9ABE?
You can click on the BUY or RFQ button to purchase TP12SH9ABE from an authorized C&K COMPONENTS distributor.
How do I troubleshoot issues or seek technical support for part TP12SH9ABE?
You can download the TP12SH9ABE datasheet or visit the C&K COMPONENTS website for support.
Who is the manufacturer of TP12SH9ABE?
C&K COMPONENTS
