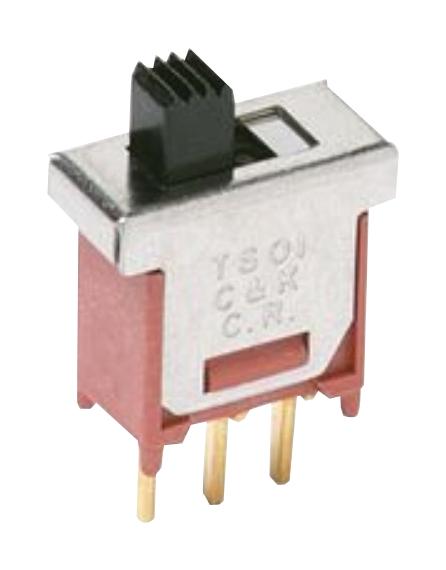

C&K COMPONENTS TS01CQE Tiny Slide Switch
The TS series tiny slide switches offer reliable contact design and long electrical life, suitable for test equipment, computers, and telecommunications. With ratings up to 3 AMPS and epoxy terminal sealing compatible with bottom wash cleaning, these switches are RoHS compliant. Models TS01, TS02, and TS03 feature various contact materials, mounting options, and switching functions, including SPDT and SPST. Constructed with flame-retardant nylon and stainless steel housings, they provide durable performance in industrial, measurement, and networking applications, ensuring high reliability and easy integration into electronic systems.
C&K COMPONENTS TS01CQE Tiny Slide Switch Specifications:
- Contact Rating: 3 AMPS @ 120 V AC or 28 V DC (TS02, TS03), 0.4 VA max. @ 20V AC/DC (TS01)
- Electrical Life: TS01 - 60,000 cycles; TS02 & TS03 - 30,000 cycles
- Contact Resistance: Below 20 mΩ
- Insulation Resistance: 10^9 Ω min.
- Dielectric Strength: 1,000 V min. @ sea level
- Operating Temperature: -30°C to 85°C
- Housing Material: Flame-retardant, heat-stabilized nylon and stainless steel
- Actuator Type: Nylon, black
- Mounting Options: Right angle PC thru-hole, wire wrap
- Terminal Seal: Epoxy (standard), compatible with bottom wash PCB cleaning
- RoHS Compliant: Yes, with models using compatible contact materials
- Switch Functions: SPDT On-None-On, SPST Off-None-On
- Contact Materials: Gold, Silver, Matte-tin, over nickel or coin silver
- Dimensions: Various sizes as per models, typical travel approximately 0.078 inches (2 mm)
Buy the Reliable Switches TS01 – Reliable Electro-Mechanical Components for Industrial Applications
Order reliable tiny slide switches online today to ensure high performance and durability in your electronic, industrial, and networking projects. Designed for easy mounting and capable of handling up to 3 amps, these switches feature epoxy sealing for superior protection and compatibility with bottom wash PCB cleaning methods. With multiple contact options including gold and silver-plated contacts, they meet RoHS standards for environmentally friendly products. Whether you need SPDT or SPST functions, these compact switches are ideal for precise control in measurement, communication, and automation equipment. Buy now for quality assurance.
Get Reliable Switches TS01 today—crafted for precision and long-lasting durability in industrial and electronic systems.
Frequently Asked Questions
Where can I buy C&K COMPONENTS TS01CQE?
You can click on the BUY or RFQ button to purchase TS01CQE from an authorized C&K COMPONENTS distributor.
How do I troubleshoot issues or seek technical support for part TS01CQE?
You can download the TS01CQE datasheet or visit the C&K COMPONENTS website for support.
Who is the manufacturer of TS01CQE?
C&K COMPONENTS
