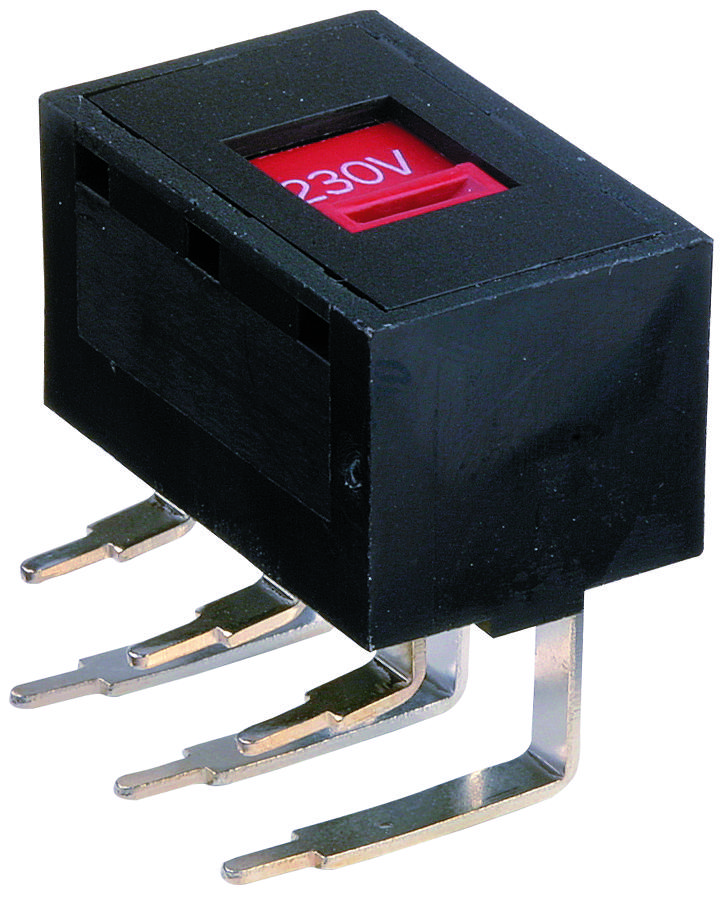

C&K COMPONENTS V80212MA08Q Power Switch
The V Series Power & Line Voltage Select Slide Switches are versatile industrial switches designed for reliable power control applications. They feature ratings up to 10 AMPS at 125 V AC, with quick connect and snap-in panel mounting options. Made with durable nylon housing and glass-filled polyester actuators, these switches support AC and DC loads and have a service life of 10,000 cycles. Suitable for appliances, automation, and control systems, they comply with RoHS standards and offer easy installation with various actuator styles and contact configurations.
C&K COMPONENTS V80212MA08Q Power Switch Specifications:
- Contact Rating: 10 GPA @ 125 V AC 50/60 Hz, 5 GPA @ 250 V AC 50/60 Hz, 2(0.5)A @ 250 VAC 50/60 Hz, 4RA @ 30 VDC
- Housing: 6/6 nylon (UL94V-2), black
- Top Plate: 6/6 nylon (UL94V-2), black
- Actuator: Glass filled polyester (UL94V-0), styles 01, 02, 12, 13, 14
- Electrical Life: 10,000 cycles at full load
- Contacts: Copper, silver plated
- Contact Resistance: Below 10 milliohm initial
- Insulation Resistance: Minimum 10^9 ohms
- Dielectric Strength: 1,000 Vrms minimum
- Operating Temperature: -30°C to +85°C
- Terminal Seal: Epoxy
- Certifications: RoHS compliant for models with Q, B, or G contact material
Buy the Electrical Switches Series Power & Line Voltage Select Switches: V80212MA08Q
Order the V Series Power & Line Voltage Select Switches online today to ensure your automation and control projects benefit from highly reliable, RoHS-compliant switches. With easy installation options like snap-in panel mounting and quick connect terminals, these durable switches support loads up to 10 amps at 125 V AC. Their robust nylon housing and glass-filled polyester actuators make them ideal for appliances and industrial control systems. Experience seamless operation, extended lifespan, and excellent electrical performance—order now for fast delivery and quality assurance!
Buy V Series Power & Line Voltage Select Switches now and experience unmatched reliability and performance in power control applications.
