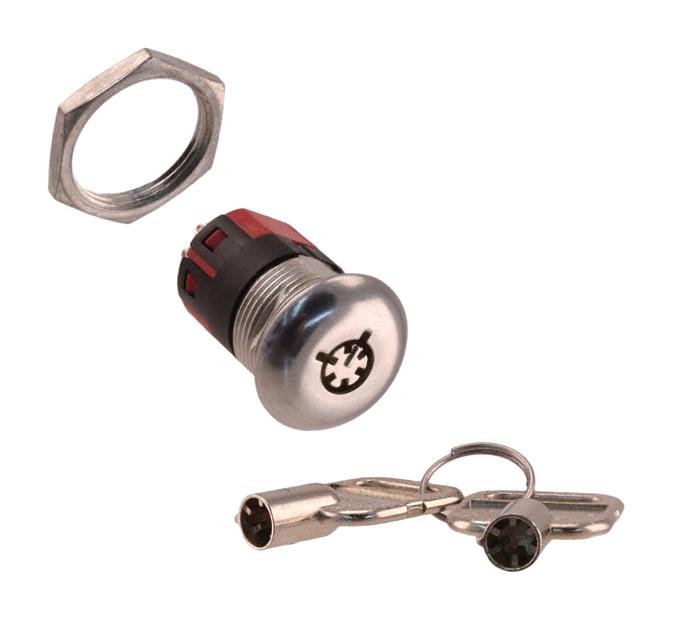

C&K COMPONENTS Y1011U2V203NQ Tumbler Lock
The Y Series 4, 5 & 6 Tumbler Switchlocks are high-security locking mechanisms suitable for bill validators, security systems, and access control. Featuring various lock styles, keying options, and anti-static options, these switches provide reliable operation with an operating temperature range of -30°C to 85°C. Made from durable materials like zinc alloy, brass, and zinc plated components, they include nickel-plated or chrome-plated keys, and are RoHS compliant. They support multiple mounting styles and terminal options, ensuring versatile installation for security and control applications.
C&K COMPONENTS Y1011U2V203NQ Tumbler Lock Specifications:
- Contact Rating: 2 AMPS @ 250 V AC (UL/CSA), 28 V DC
- Materials: Zinc alloy lock body, stainless steel facing, nickel or chrome plated keys
- Operating Temperature: -30°C to 85°C
- Mounting Styles: Panel, nut, clip, dress nut options
- Keying: Two nickel plated brass keys with code, or zinc alloy keys; standard, master, and custom keying available
- Dimensions: Standard panel cutouts approximately 0.550 inches (13.978 mm) diameter, panel thickness accommodates 0.065 to 0.105 inches
- Relay Function: Mechanical lock with multiple positions; 45° or 90° indexing; various lock configurations
- Electrical Life: 10,000 cycles
- Certifications: UL Listed, CSA Certified, RoHS compliant
- Terminals: Copper with gold or silver plating, solder lug, PC through-hole, wire lead options
Buy the CK Switches Series Y Tumbler Lock: Y1011U2V203NQ
Purchase CK Switches Y1011U2V203NQ tumbler lock online and experience high-security mechanical locking with multiple keying options, durable materials, and versatile mounting styles. Ideal for access control, security systems, and bill validators, this lock features a robust zinc alloy body, nickel-plated keys, and RoHS compliance. Its reliable operation supports 10,000 cycles with a temperature range of -30°C to 85°C, ensuring long-term durability. Place your order today for a dependable locking solution that guarantees security and ease of installation.
Get CK Switches Y1011U2V203NQ today—built for secure control and long-lasting durability.
