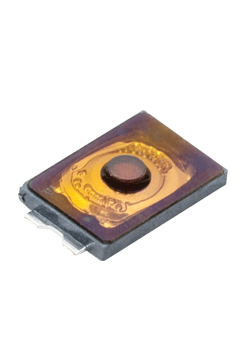

C&K COMPONENTS Y25B13110FP Ultra Low Profile Tactile Switch
The C&K COMPONENTS Y25B13110FP is a compact, ultra-low profile tactile switch engineered for integration into a wide range of portable and wearable electronic devices. Its small footprint (3.0 x 2.0 mm) and slim profile (0.58 mm) make it ideal for applications where space is at a premium, such as in-ear headphones, mobile phones, and hearing aids. The switch provides momentary action with a travel of 0.13 mm and is designed for surface mount technology (SMT) assembly. It boasts a high cycle life of 300,000 actuations and is compatible with infrared reflow soldering processes. The switch is RoHS compliant and halogen-free, meeting stringent environmental standards.
C&K COMPONENTS Y25B13110FP Ultra Low Profile Tactile Switch Specifications:
- Footprint: 3.0 x 2.0 mm
- Thickness: 0.58 mm
- Function: Momentary action
- Contact Arrangement: 1 make contact = SPST, N.O.
- Travel: 0.13 mm ± 0.05 mm
- Maximum Voltage: 12 VDC
- Maximum Current DC: 50 mA
- Dielectric Strength: 100 V AC (1mn)
- Contact Resistance: ≤ 500 mΩ
- Insulation Resistance: ≥ 100 MΩ
- Bounce Time: ≤ 10 ms
- Operating Force: 100 ± 30 gf (KXT 111 LHS), 180 ± 50 gf (KXT 121 LHS), 240 ± 70 gf (KXT 131 LHS)
- Operating Life: 300,000 cycles
- Operating Temperature: -30˚C to 85˚C
- Storage Temperature: -40˚C to 90˚C
- Soldering Method: Infrared Reflow Soldering (IEC61760-1)
