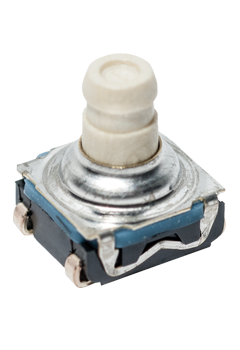

C&K COMPONENTS Y31A41S91FPLFS Sealed Tact Switch
The C&K COMPONENTS Y31A41S91FPLFS is a sealed momentary action tact switch designed for demanding environments. It offers a positive tactile feel, IP67 sealing for protection against dust and water, and is available with J or Gullwing terminations for SMT assembly. This switch is well-suited for automotive, medical instruments, industrial electronics, and network infrastructure applications where reliability and durability are essential. It operates within a temperature range of -40°C to 85°C and offers various electrical specifications including a maximum power of 1 VA and a dielectric strength of ≥ 250 Vrms.
C&K COMPONENTS Y31A41S91FPLFS Sealed Tact Switch Specifications:
- FUNCTION: Momentary action
- CONTACT ARRANGEMENT: 1 make contact = SPST, N.O.
- TERMINALS: J bend & Gullwing type for SMT
- SEALING: IP67
- OPERATING TEMPERATURE: -40˚C to 85˚C
- STORAGE TEMPERATURE: -55˚C to 85˚C
- MAXIMUM POWER: 1 VA
- MAXIMUM VOLTAGE: 32 VDC
- MINIMUM VOLTAGE: 20 mV
- MAXIMUM CURRENT: 50 mA
- MINIMUM CURRENT: 1 mA
- DIELECTRIC STRENGTH: ≥ 250 Vrms
- CONTACT RESISTANCE: ≤ 100mΩ
- INSULATION RESISTANCE: ≥ 10M Ω
- BOUNCE TIME: ≤ 1 ms
