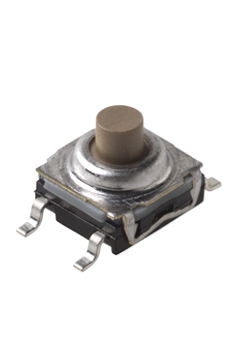

C&K COMPONENTS Y31C21666FPROHS Sealed Tact Switch
The C&K COMPONENTS Y31C21666FPROHS is a sealed momentary action tact switch designed for demanding environments. It offers a positive tactile feel, various heights, and IP67 sealing for protection against dust and water. Typical applications include automotive interiors, medical instruments, industrial electronics, and network infrastructure. The switch is available with J or G terminations for SMT assembly and is suitable for a wide range of industrial and consumer applications. Contact customer service for contractual specification packages.
C&K COMPONENTS Y31C21666FPROHS Sealed Tact Switch Specifications:
- Function: Momentary action
- Contact Arrangement: 1 make contact = SPST, N.O.
- Terminals: J bend & Gullwing type for SMT
- Sealing: IP67 (except KSC5 - IP50)
- Operating Temperature: -40°C to 85°C / -40°C to 125°C
- Storage Temperature: -55°C to 85°C / -55°C to 125°C
- Maximum Power: 1 VA / 0.2 VA
- Maximum Voltage: 32 VDC
- Minimum Voltage: 20 mV
- Maximum Current: 50 mA / 10 mA
- Minimum Current: 1 mA / 0.1 mA
- Dielectric Strength: ≥ 250 Vrms
- Contact Resistance: ≤ 100mΩ
- Insulation Resistance: ≥ 10M Ω
- Bounce Time: ≤ 1 ms
- Packaging: Tape and Reel
Buy the Y31C21666FPROHS C&K COMPONENTS Sealed Tact Switch | myMectronic
Purchase the C&K COMPONENTS Y31C21666FPROHS Sealed Tact Switch securely and efficiently online.
Buy Now
Frequently Asked Questions
Where can I buy C&K COMPONENTS Y31C21666FPROHS?
You can click on the BUY or RFQ button to purchase Y31C21666FPROHS from an authorized C&K COMPONENTS distributor.
How do I troubleshoot issues or seek technical support for part Y31C21666FPROHS?
You can download the Y31C21666FPROHS datasheet or visit the C&K COMPONENTS website for support.
Who is the manufacturer of Y31C21666FPROHS?
C&K COMPONENTS
