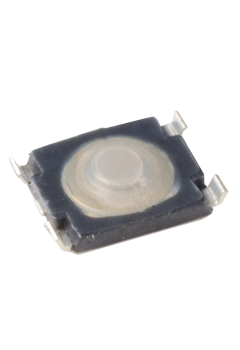

C&K COMPONENTS Y34H01222FP Nano-Miniature SMT Switch
The C&K COMPONENTS Y34H01222FP is a nano-miniature SMT (Surface Mount Technology) tactile switch designed for applications demanding a small footprint and reliable performance. This switch boasts a 3.0 x 2.6 mm footprint, making it suitable for mobile phones, hearing aids, MP3 accessories, automotive keyless entry systems, and other compact devices. It offers extended life cycles, an IP68 rating for environmental protection, and ultra-low current capabilities. The switch is available in momentary action, normally open configurations and is packaged in reels of 5,000 pieces, facilitating automated assembly processes. Consult C&K Components for specific or custom switch requirements.
C&K COMPONENTS Y34H01222FP Nano-Miniature SMT Switch Specifications:
- Footprint: 3.0 x 2.6 mm
- Actuation Force: 1.0 N (100 grams) to 3.4 N (340 grams)
- Operating Life: 300,000 to 1,000,000 cycles
- Maximum Power: 0.5 VA
- Maximum Voltage: 32 VDC
- Minimum Voltage: 20 mV
- Maximum Current DC: 50 mA
- Minimum Current DC: 1 mA
- Dielectric Strength: ≥ 250 Vrms (1mn)
- Contact Resistance: ≤ 150 mΩ
- Insulation Resistance: ≥ 50 MΩ
- Bounce Time: ≤ 6 ms
- Operating Temperature: -40˚C to 85˚C
- Storage Temperature: -55˚C to +85˚C
- Soldering: Lead free reflow soldering process in accordance with IEC 61760-1
- Packaging: Reels of 5,000 pieces, EIA 481B, 180 mm diameter
