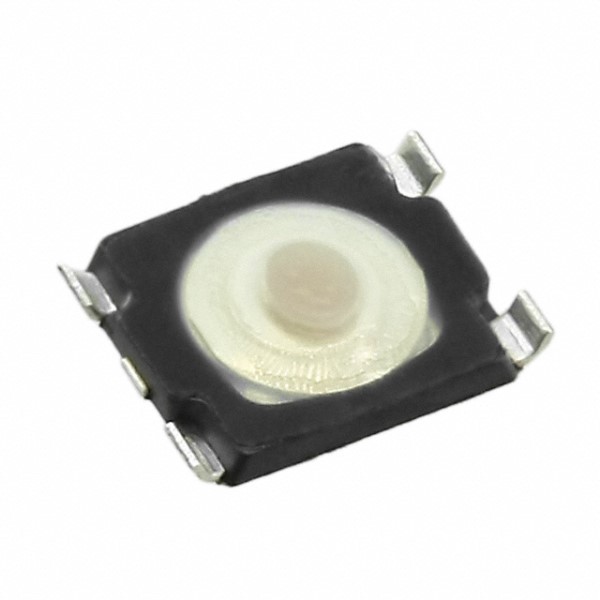

C&K COMPONENTS Y34H07122FP Nano-Miniature SMT Switch
The C&K COMPONENTS Y34H07122FP is a nano-miniature SMT top-actuated tactile switch engineered for space-constrained applications. Its key features include a minimal footprint, the smallest thickness with an integrated actuator, extended life cycles, an IP68 rating for environmental protection, and ultra-low current capabilities. Typical applications include mobile phones, hearing aids, MP3 accessories, Bluetooth headsets, automotive keyless entry systems, smoke and CO detectors, and home automation remote controls. The switch offers momentary action with a normally open contact arrangement and is suitable for infrared reflow soldering. It is packaged in reels of 5,000 pieces, adhering to EIA 481B standards.
C&K COMPONENTS Y34H07122FP Nano-Miniature SMT Switch Specifications:
- FUNCTION: momentary action, normally open
- CONTACT ARRANGEMENT: 1 make contact = SPST, N.O.
- TERMINALS: J lead type for SMT
- TRAVEL (mm): 0.15 ± 0.1
- Operating force: 1.0 (100) ± 25% Newtons (grams)
- Tactile Feeling: ≥10%
- Operating Life: 300,000 cycles
- MAXIMUM POWER: 0.5 VA
- MAXIMUM VOLTAGE: 32 VDC
- MINIMUM VOLTAGE: 20 mV
- MAXIMUM CURRENT DC: 50 mA
- MINIMUM CURRENT DC: 1 mA
- DIELECTRIC STRENGTH: ≥ 250 Vrms (1mn)
- CONTACT RESISTANCE: ≤ 150 mΩ
- INSULATION RESISTANCE: ≥ 50 MΩ
- BOUNCE TIME: ≤ 6 ms
- OPERATING TEMPERATURE: -40˚C to 85˚C
- STORAGE TEMPERATURE: -55˚C to +85˚C
- SOLDERING: Infrared Reflow Soldering in accordance with IEC61760-1
- Packaging: In reels of 5,000 pieces. Dimensions of reels according to EIA 481B External diameter 180 mm
