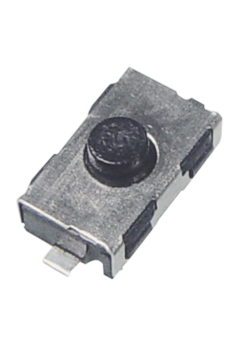

C&K COMPONENTS Y35A20314FPLFG Subminiature Detect Switch
The C&K COMPONENTS Y35A20314FPLFG is a subminiature detect switch designed for surface mount technology (SMT) applications. This switch offers gold-plated contacts for reliable performance and a soft actuator for ease of use. It is RoHS compliant and features gullwing terminations for easy integration into PCB designs. Typical applications include automotive systems, industrial electronics, and medical equipment where a compact and reliable momentary action switch is required. The switch is delivered on continuous tape in reels of 2,500 pieces, and soldering is compatible with lead-free reflow processes.
C&K COMPONENTS Y35A20314FPLFG Subminiature Detect Switch Specifications:
- Contact Material: Gold
- Maximum Power: 0.2 VA
- Function: momentary action
- Maximum Voltage: 32 VDC
- Contact Arrangement: N.O.
- Minimum Voltage: 20 mV
- Terminals: Gullwing type for SMT
- Maximum Current DC: 10 mA
- Minimum Current DC: 1 mA
- Operating Force: 1.5N to 0.8N (depending on variant)
- Operating Life: 100,000 operations
- Bounce Time: 1 ms
- Insulation Resistance: 10^9 Ω
- Operating Temperature: -40°C to 125°C
- Storage Temperature: -55°C to 125°C
- Contact Resistance: 100 mΩ
- Packaging: Continuous tape, reels of 2,500 pieces
