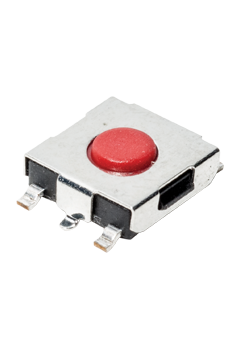

C&K COMPONENTS Y97GT23B2QAFP SMT Top Actuated Switch
The C&K COMPONENTS Y97GT23B2QAFP is a surface mount technology (SMT) top actuated switch designed for a wide range of applications. This momentary action switch offers a compact footprint of 6.3x6.3mm and is available with multiple height options (2.5mm, 3.1mm, and 3.4mm). It features a SPST N.O. (Single Pole Single Throw, Normally Open) contact arrangement and can be configured with or without a ground pin. Typical applications include metering, white goods, and home and garden equipment. The switch is RoHS compliant and packaged in reels of 1,500 pieces, making it suitable for automated assembly processes.
C&K COMPONENTS Y97GT23B2QAFP SMT Top Actuated Switch Specifications:
- Function: Momentary action
- Contact Arrangement: 1 make contact = SPST N.O.
- Terminals: G type for SMT
- Travel: 0.20 mm ±0.15 mm (160 &250 gf), 0.30 mm ±0.15 mm (320 gf)
- Operating Life: 100,000 cycles
- Operation Force: 160 gf ±50 gf (blue actuator), 250 gf ±50 gf (red actuator), 320 gf ±80 gf (black actuator)
- Maximum Voltage: 12 VDC
- Maximum Current DC: 50 mA
- Dielectric Strength: 250 VA C (1mn)
- Contact Resistance: 100 m Ω
- Insulation Resistance: ≥ 100 M Ω
- Bounce Time: < 5 ms
- Operating Temperature: -20˚C to 85˚C
- Soldering: Infrared Reflow Soldering in accordance with IEC61760-1
- Footprint: 6.3 x 6.3 mm
- Packaging: Reels of 1,500 pieces, EIA 481B, External diameter 330 mm
