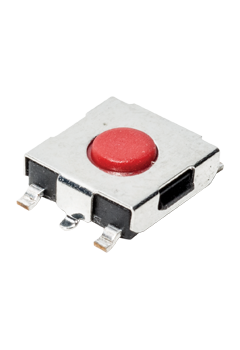

C&K COMPONENTS Y97GT23B5RAFP SMT Top Actuated Switch
The C&K COMPONENTS Y97GT23B5RAFP is a versatile SMT top-actuated switch designed for a wide range of applications including metering, white goods, and home/garden equipment. This switch offers a momentary action and a single-pole, single-throw (SPST) normally open (N.O.) contact arrangement. It boasts a compact 6.3x6.3mm footprint, multiple height options (2.5mm, 3.1mm, and 3.4mm), and an optional ground pin for enhanced functionality. The switch is designed for infrared reflow soldering and is RoHS compliant, making it suitable for environmentally conscious designs. Its robust construction and reliable performance ensure long-term durability in demanding industrial environments.
C&K COMPONENTS Y97GT23B5RAFP SMT Top Actuated Switch Specifications:
- Function: Momentary action
- Contact Arrangement: 1 make contact = SPST N.O.
- Terminals: G type for SMT
- Travel: 0.20 mm ±0.15 mm (160 & 250 gf), 0.30 mm ±0.15 mm (320 gf)
- Operating Life: 100,000 cycles
- Operation Force: 160 gf ±50 gf (blue actuator), 250 gf ±50 gf (red actuator), 320 gf ±80 gf (black actuator)
- Maximum Voltage DC: 12 VDC
- Maximum Current DC: 50 mA
- Dielectric Strength: 250 VA C (1mn)
- Contact Resistance: 100 m Ω
- Insulation Resistance: ≥ 100 M Ω
- Bounce Time: < 5 ms
- Operating Temperature: -20˚C to 85˚C
- Footprint: 6.3 x 6.3 mm
- Packaging: Reels of 1,500 pieces, EIA 481B, External diameter 330 mm
Buy the Y97GT23B5RAFP C&K COMPONENTS SMT Top Actuated Switch | myMectronic
Purchase the C&K COMPONENTS Y97GT23B5RAFP SMT Top Actuated Switch securely and efficiently through our online platform.
Buy Now
Frequently Asked Questions
Where can I buy C&K COMPONENTS Y97GT23B5RAFP?
You can click on the BUY or RFQ button to purchase Y97GT23B5RAFP from an authorized C&K COMPONENTS distributor.
How do I troubleshoot issues or seek technical support for part Y97GT23B5RAFP?
You can download the Y97GT23B5RAFP datasheet or visit the C&K COMPONENTS website for support.
Who is the manufacturer of Y97GT23B5RAFP?
C&K COMPONENTS
