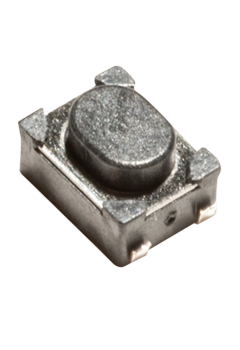

C&K COMPONENTS Y97LT25B8DBFP Microminiature SMT Switch
The C&K COMPONENTS Y97LT25B8DBFP is a microminiature SMT (Surface Mount Technology) tactile switch within the PTS 810 series. Designed for compact applications, it boasts a small 4.2 x 3.2 mm footprint and a 2.5 mm thickness. Key features include a high number of cycles, color-coded actuators for easy identification, and suitability for infrared reflow soldering. Typical applications include control panels, nomad devices, remote controls, and keyless entry systems. The switch offers momentary action with a SPST (Single Pole Single Throw) Normally Open contact arrangement and is available in various actuation forces (160gf, 260gf, 400gf, and 600gf).
C&K COMPONENTS Y97LT25B8DBFP Microminiature SMT Switch Specifications:
- Function: momentary action
- Contact Arrangement: 1 make contact = SPST N.O.
- Terminals: J type for SMT
- Travel: 160 & 260 gf: 0.15mm ± 0.1mm, 400 & 600 gf: 0.20mm ± 0.1mm
- Operating Force: 160± 50 gf, 260 ± 70 gf, 400± 100 gf, 600 ± 150 gf
- Operating Life: 150,000 operations (160gf), 50,000 operations (260gf)
- Maximum Voltage: 16 VDC
- Maximum Current DC: 50 mA
- Dielectric Strength: 250 VA C (1mn)
- Contact Resistance: ≤ 500 mΩ
- Insulation Resistance: ≥ 100 MΩ
- Bounce Time: ≤ 10 ms
- Operating Temperature: -40˚C to 85˚C
- Footprint: 4.2 x 3.2 mm
- Thickness: 2.5 mm
- Packaging: Reels of 2,900 pieces, Dimensions of reels according to EIA 481B External diameter 330 mm
