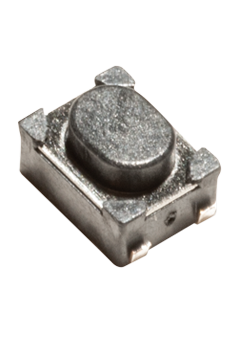

C&K COMPONENTS Y97LT25BADBFP Microminiature SMT Switch
The C&K COMPONENTS Y97LT25BADBFP is a microminiature SMT (Surface Mount Technology) tactile switch within the PTS 810 series. Designed for compact applications, it boasts a small 4.2 x 3.2 mm footprint and a 2.5 mm thickness. Key features include a high number of cycles, color-coded actuators for easy identification, and suitability for infrared reflow soldering. Typical applications include control panels, nomad devices, remote controls, and keyless entry systems. The switch offers momentary action with a SPST (Single Pole Single Throw) contact arrangement and various actuation forces (160gf, 260gf, 400gf, and 600gf) to meet diverse design requirements. It is RoHS compliant and packaged in reels of 2,900 pieces.
C&K COMPONENTS Y97LT25BADBFP Microminiature SMT Switch Specifications:
- function: momentary action
- contact_arrangement: 1 make contact = SPST N.O.
- terminals: J type for SMT
- travel: 160 & 260 gf: 0.15mm ± 0.1mm, 400 & 600 gf: 0.20mm ± 0.1mm
- operating_force: 160± 50 gf, 260 ± 70 gf, 400± 100 gf, 600 ± 150 gf
- operating_life: 150,000 operations (160gf), 50,000 operations (260gf)
- maximum_voltage: 16 VDC
- maximum_current_dc: 50 mA
- dielectric_strength: 250 VA C (1mn)
- contact_resistance: ≤ 500 mΩ
- insulation_resistance: ≥ 100 MΩ
- bounce_time: ≤ 10 ms
- operating_temperature: -40˚C to 85˚C
- footprint: 4.2 x 3.2 mm
- thickness: 2.5 mm
- packaging: reels of 2,900 pieces, external diameter 330 mm
