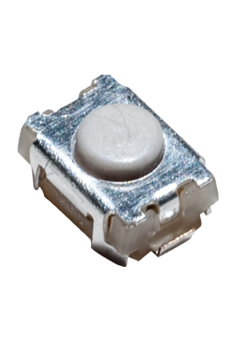

C&K COMPONENTS Y97MT16B5MBFP Microminiature SMT Switch
The C&K COMPONENTS PTS820 series microminiature SMT top-actuated switch offers a compact and reliable solution for various applications. Its small footprint and multiple height options (1.5mm, 2.0mm, and 2.5mm) make it suitable for space-constrained designs. The switch boasts a high cycle life, ensuring long-term reliability. Typical applications include control panels, nomad devices, remote controls, and keyless entry systems. The easy build-a-switch concept allows for customization to meet specific design requirements. Consult the datasheet for detailed specifications and ordering information.
C&K COMPONENTS Y97MT16B5MBFP Microminiature SMT Switch Specifications:
- function: momentary action
- contact_arrangement: 1 make contact = SPST N.O.
- terminals: J type for SMT
- travel: 0.2mm + 0.1mm / -0.05 mm
- operating_force: 160± 50 gf
- life_cycles: 200,000 cycles
- height: 2.5 mm
- maximum_voltage: 12 VDC
- maximum_current_dc: 50 mA
- dielectric_strength: 100 VA C (1mn)
- contact_resistance: ≤ 100 mΩ
- insulation_resistance: ≥ 100 MΩ
- bounce_time: ≤ 10 ms
- operating_temperature: -40˚C to 85˚C
- soldering: Infrared Reflow Soldering in accordance with IEC61760-1
- packaging_1_5mm: reels of 2,500 pieces
- packaging_2_0mm: reels of 2,500 pieces
- packaging_2_5mm: reels of 2,300 pieces
- reel_diameter: 330 mm (EIA 481B)
