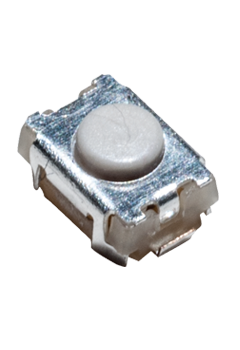

C&K COMPONENTS Y97MT26B5DBFP Microminiature SMT Switch
The C&K PTS820 series microminiature SMT top-actuated switch offers a compact and reliable solution for various applications. Its small footprint (3.9 x 2.9 mm) and multiple height options (1.5mm, 2.0mm, and 2.5mm) make it ideal for space-constrained designs. The switch provides momentary action with a travel of 0.2mm and boasts a high cycle life, ensuring long-term durability. Typical applications include control panels, nomad devices, remote controls, and keyless entry systems. The switch is RoHS compliant and available in various configurations with or without pegs, catering to diverse mounting requirements. Soldering is best achieved through infrared reflow soldering.
C&K COMPONENTS Y97MT26B5DBFP Microminiature SMT Switch Specifications:
- Function: momentary action
- Contact Arrangement: 1 make contact = SPST N.O.
- Terminals: J type for SMT
- Travel: 0.2mm + 0.1mm / -0.05 mm
- Operating Force: 160± 50 gf
- Life Cycles: 100,000 - 200,000 cycles
- Height: 1.5mm, 2.0mm, 2.5mm
- Maximum Voltage: 12 VDC
- Maximum Current DC: 50 mA
- Dielectric Strength: 100 VA C (1mn)
- Contact Resistance: ≤ 100 mΩ
- Insulation Resistance: ≥ 100 MΩ
- Bounce Time: ≤ 10 ms
- Operating Temperature: -40˚C to 85˚C
- Soldering: Infrared Reflow Soldering in accordance with IEC61760-1
- Footprint: 3.9 x 2.9 mm
