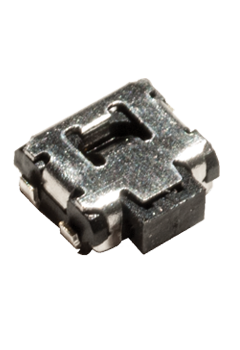

C&K COMPONENTS Y97NS23B5ABFP Microminiature SMT Switch
The C&K COMPONENTS PTS 840 series microminiature SMT side-actuated switch is a compact solution for a variety of applications, including Nomad devices, remote controls, and personal health diagnostics. Featuring a 3.5 x 3.55 mm footprint, it offers a reduced footprint and options for strong shear resistance with front PIP leads and ESD protection. The switch provides momentary action with a maximum voltage of 12 VDC and a maximum current of 50 mA, and is suitable for infrared reflow soldering. Available in tape and reel packaging with dimensions according to EIA 481B.
C&K COMPONENTS Y97NS23B5ABFP Microminiature SMT Switch Specifications:
- Maximum Voltage: 12 VDC
- Maximum Current DC: 50 mA
- Dielectric Strength: 250 VA C (1mn)
- Contact Resistance: ≤ 500 mΩ
- Insulation Resistance: ≥ 100 MΩ
- Bounce Time: ≤ 10 ms
- Function: momentary action
- Contact Arrangement: 1 make contact = SPST N.O.
- Terminals: G and front PIP types for SMT
- Travel: 0.2mm + 0.2mm / -0.1 mm
- Life: 100,000 cycles
- Operating Temperature: -40˚C to 85˚C
