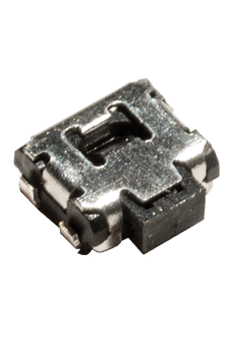

C&K COMPONENTS Y97NS27B2ABFP Microminiature SMT Switch
The C&K PTS 840 series microminiature SMT side-actuated switch offers a compact and reliable solution for various applications. Its small footprint and side-actuated design make it suitable for space-constrained environments. Features include an ESD pin option for electrostatic discharge protection, front PIP leads for enhanced shear resistance, and compatibility with nomad devices and personal health diagnostics. The switch is designed for infrared reflow soldering and is available in tape and reel packaging for automated assembly.
C&K COMPONENTS Y97NS27B2ABFP Microminiature SMT Switch Specifications:
- maximum_voltage: 12 VDC
- maximum_current_dc: 50 mA
- dielectric_strength: 250 VA C (1mn)
- contact_resistance: ≤ 500 mΩ
- insulation_resistance: ≥ 100 MΩ
- bounce_time: ≤ 10 ms
- contact_arrangement: 1 make contact = SPST N.O.
- terminals: G and front PIP types for SMT
- travel: 0.2mm + 0.2mm / -0.1 mm
- life: 100,000 cycles
- operating_temperature: -40˚C to 85˚C
- soldering: Infrared Reflow Soldering in accordance with IEC61760-1
- packaging: In reels of 3,500 pieces Dimensions of reels according to EIA 481B External diameter 330 mm
- footprint: 3.5 x 3.55 mm
